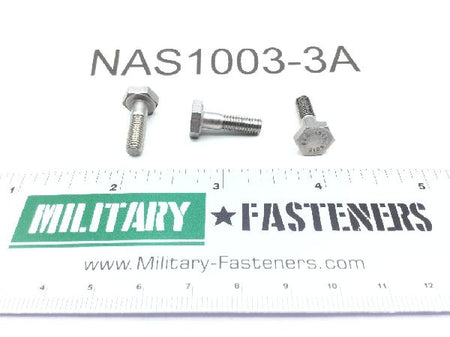

NAS1003-3A Machine Bolt

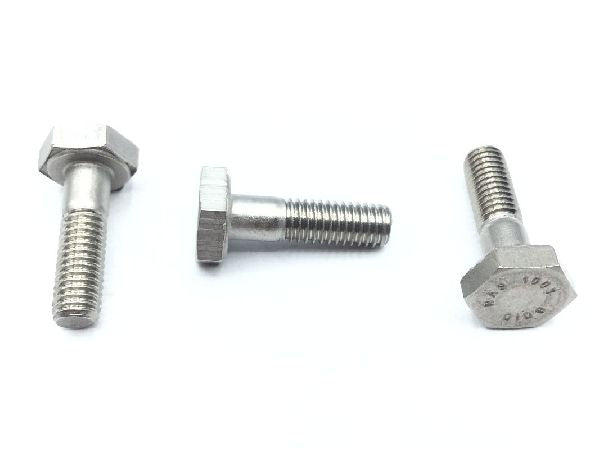

NAS1003-3A Machine Bolt (2)

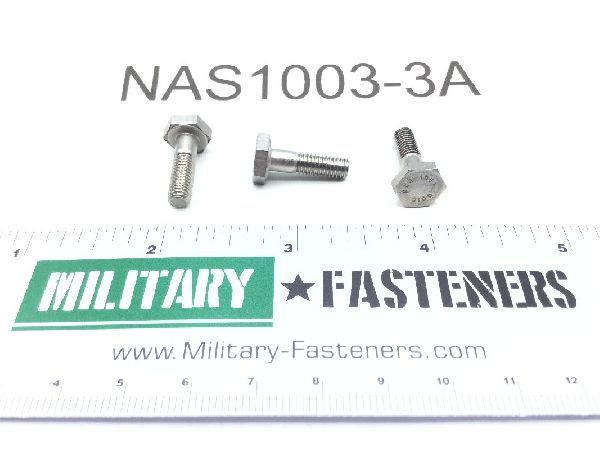

NAS1003-3A Machine Bolt
NAS1003-3A Machine Bolt (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1003-3A Machine Bolt

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2000
Price per Unit $2.70
Units per Pack 20
Price per Pack $54.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:
Total Packs 1
Total Price $54.00
Add item to quote
Head Style
Hexagon
Material
Iron alloy 660
Surface Treatment
Mil-s-5002 military specification single treatment response
Thread Class
3a
Fastener Length
0.669 inches
Features
Finished head
Features Provided
Finished head
Grip Length
0.188 inches
Head Height
0.125 inches
Material Specification
Ams 5732 assn standard 1st material response or ams 5737 assn standard 2nd material response or ams 5733 assn standard 3rd material response
Min. Tensile Strength (psi)
140000 pounds per square inch
Special Test Features
Tensile strength at room temperature
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
0.481 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Width Between Flats
Between 0.367 inches and 0.376 inches
