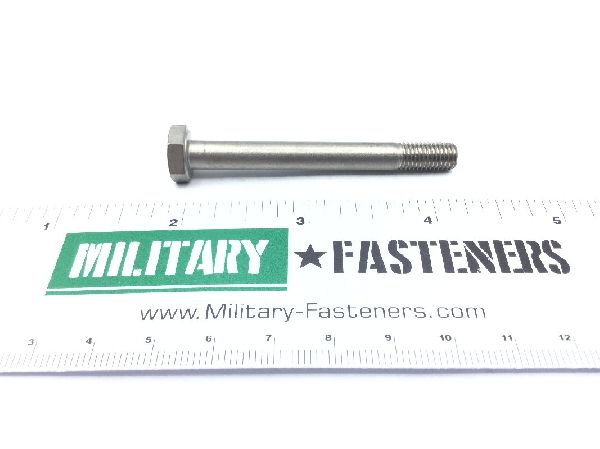

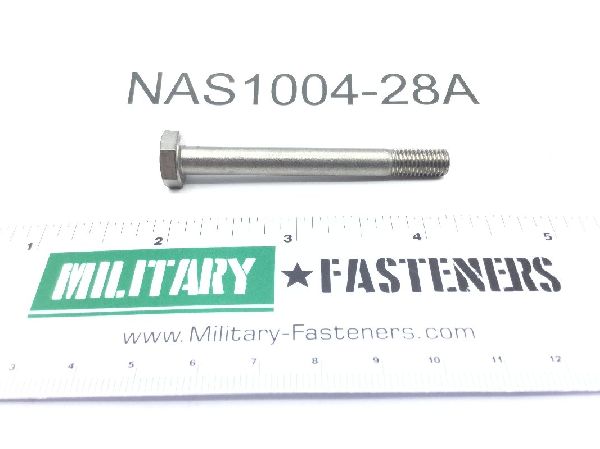

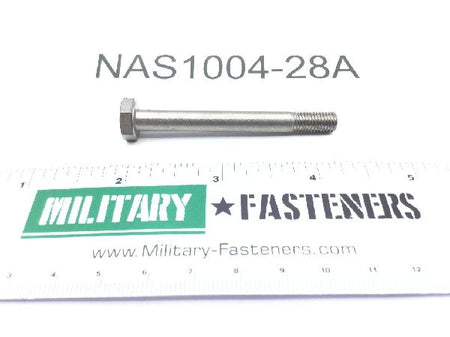

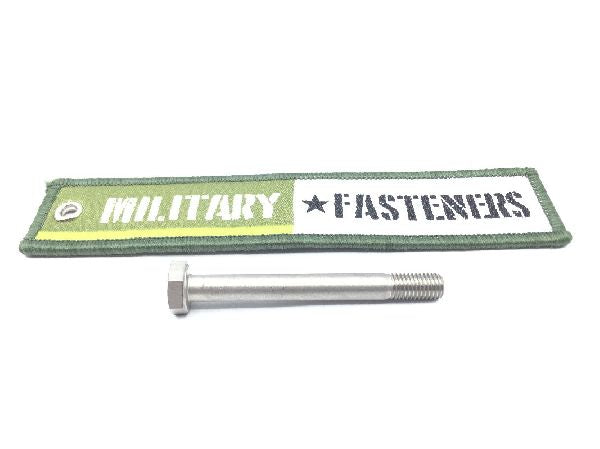

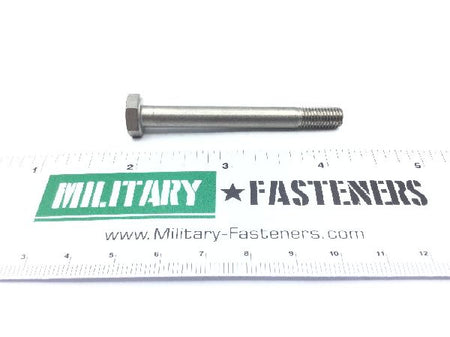

NAS1004-28A Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $48.44

Units per Pack 1

Price per Pack $48.44

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $48.44

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Fastener Length: Between 2.279 inches and 2.309 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 1.735 inches and 1.765 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Ams5732 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Specification Data: 80205-nas1004 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.514 inches and 0.574 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
