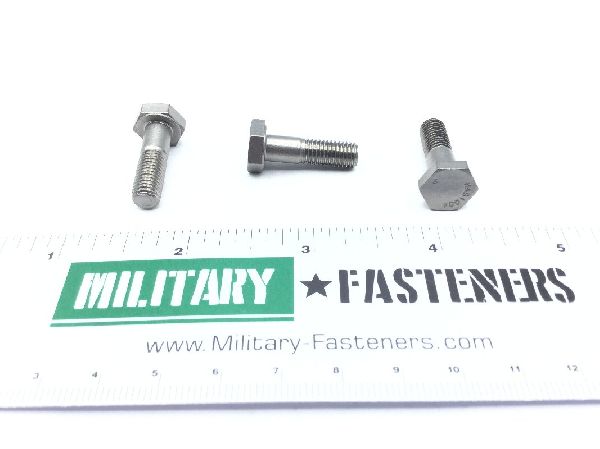

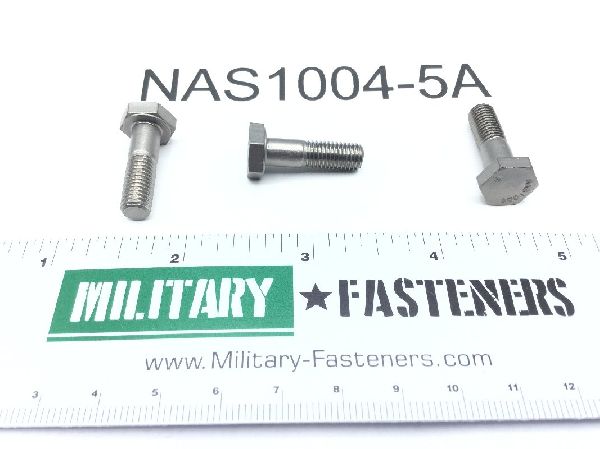

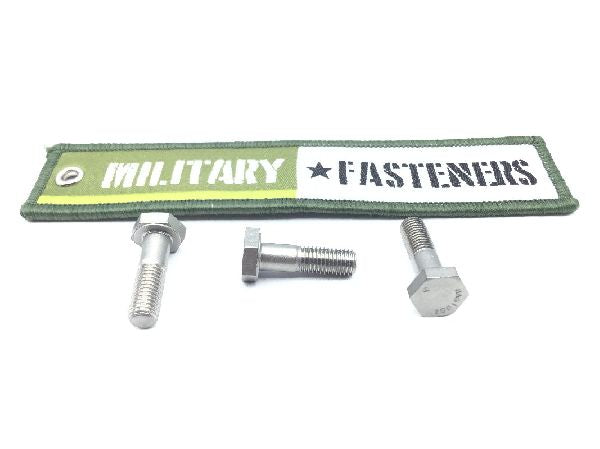

NAS1004-5A Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.846 inches and 0.866 inches
Grip Length: Between 0.297 inches and 0.327 inches
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Ams5732 assn standard single material response or ams5735 assn standard single material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Specification Data: 80205-nas1004 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.544 inches
Thread Qty Per Inch (tpi): A28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
