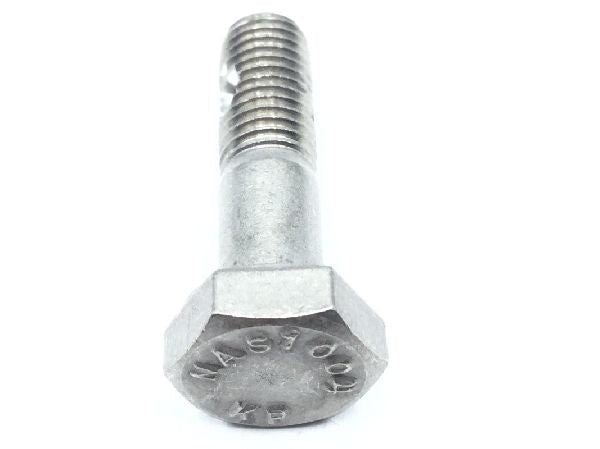

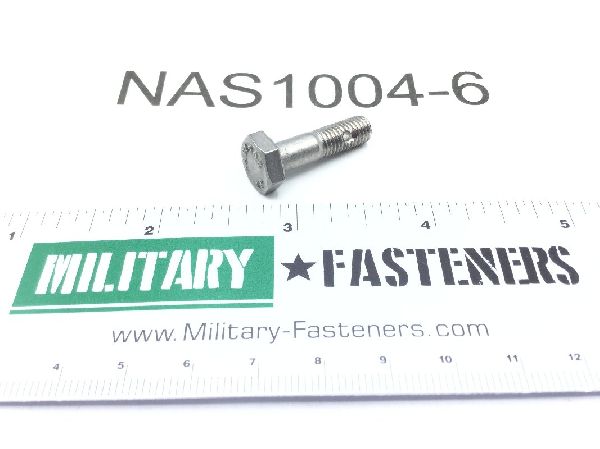

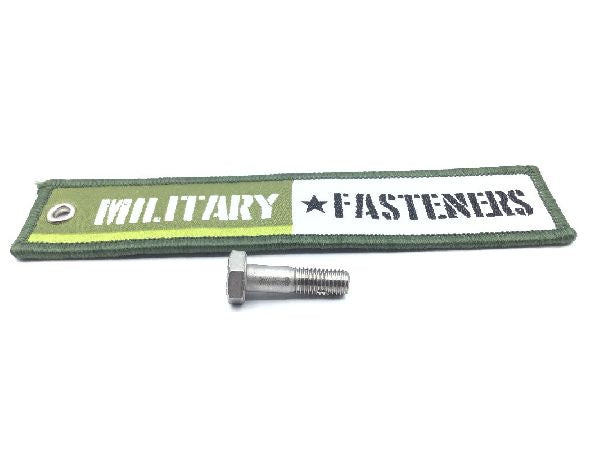

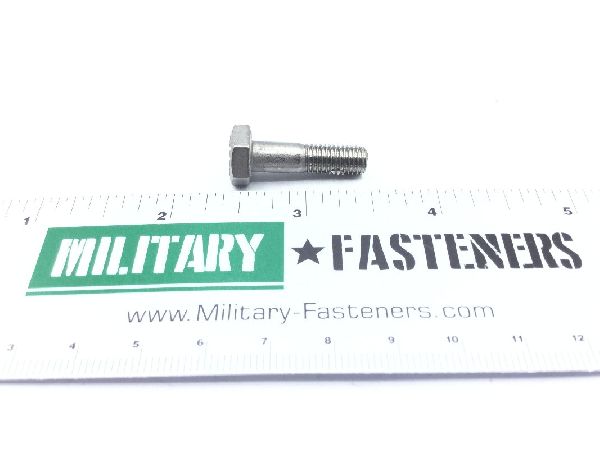

NAS1004-6 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $34.58

Units per Pack 1

Price per Pack $34.58

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $34.58

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Thread Class

Fastener Length: 0.919 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.375 inches
Head Height: 0.156 inches
Material Specification: Ms 5732 assn standard single material response
Minimum Yield Strength: 85000 pounds per square inch
Specification Data: 80205-nas1004 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.544 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.437 inches
