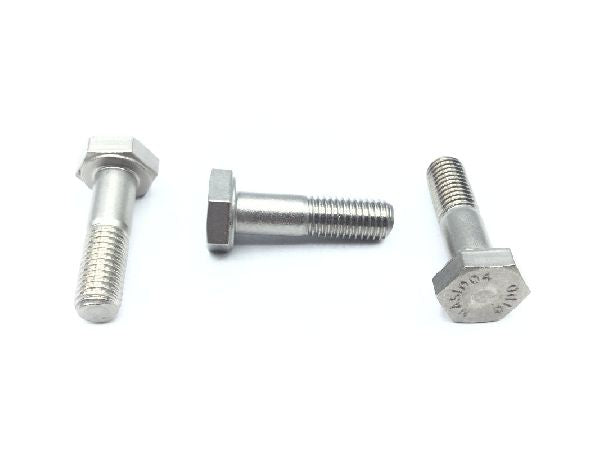

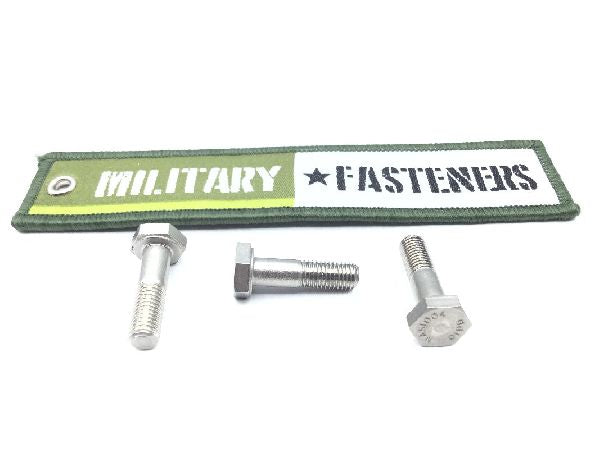

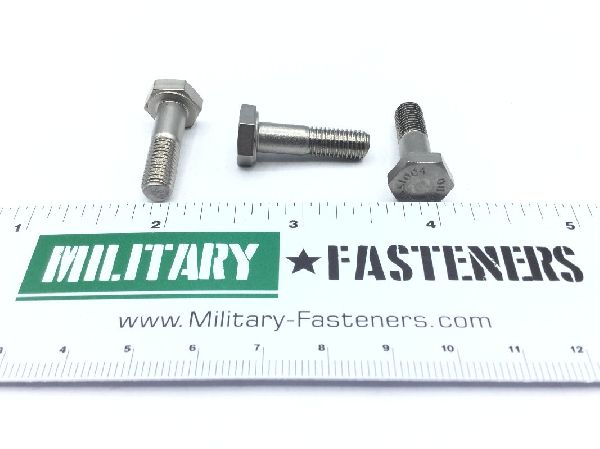

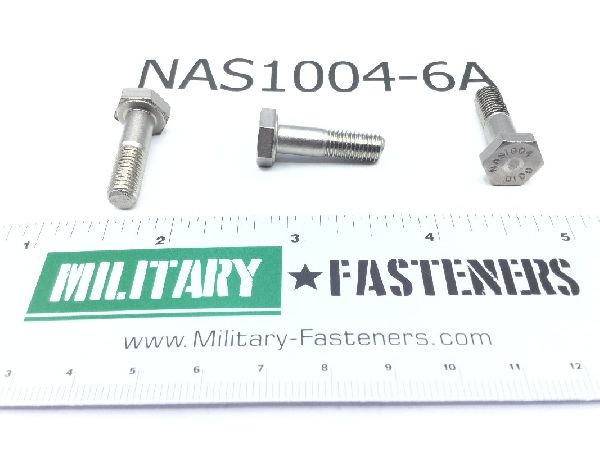

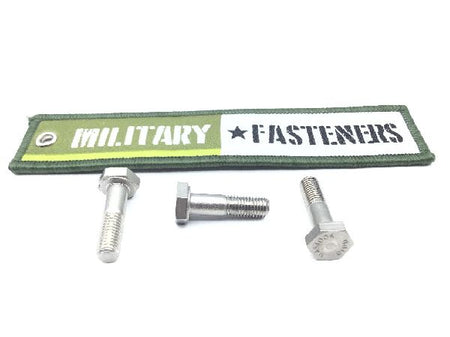

NAS1004-6A Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $7.97

Units per Pack 10

Price per Pack $79.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $79.70

Add item to quote

Head Style

Hexagon

Material

Iron

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Fastener Length: Between 0.904 inches and 0.934 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.360 inches and 0.390 inches
Hardness Rating: 248.0 brinell standard and 341.0 brinell standard
Head Height: Between 0.140 inches and 0.172 inches
Material Specification: Ams 5732 assn standard 1st material response or ams 5737 assn standard 1st material response or ams 5733 assn standard 2nd material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Specification Data: 80205-nas1004 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.514 inches and 0.574 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
