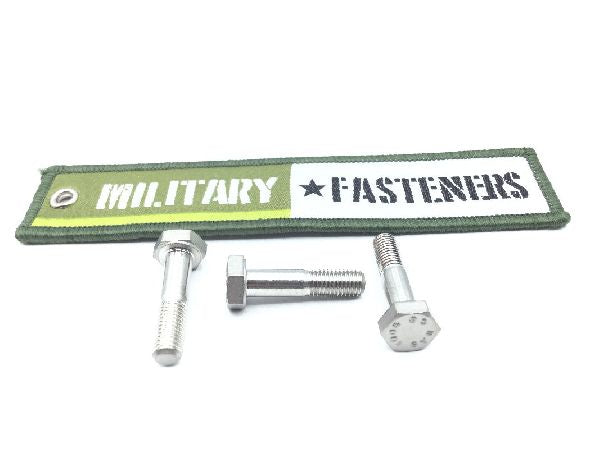

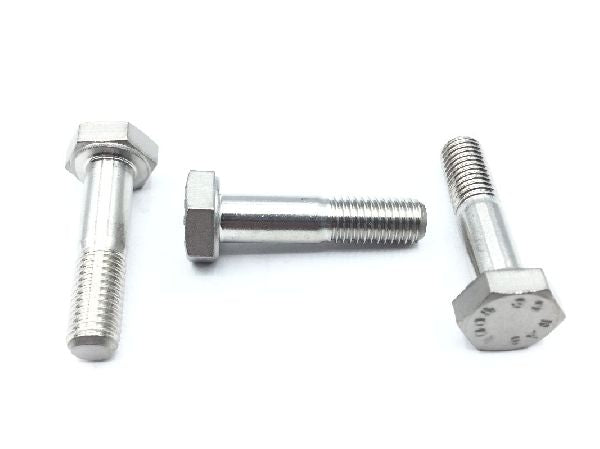

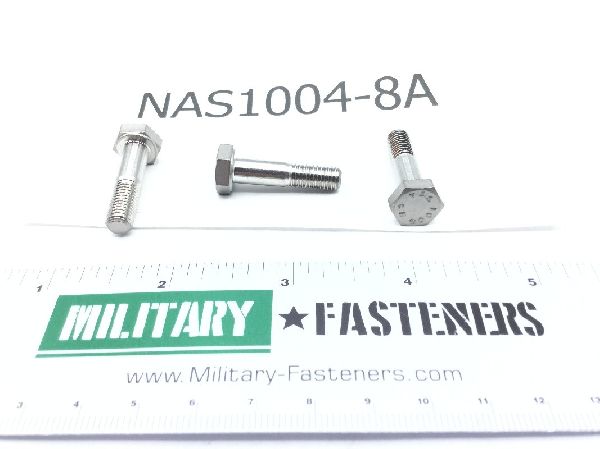

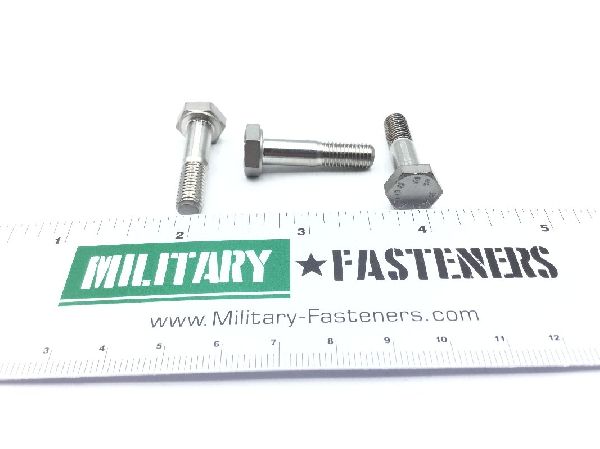

NAS1004-8A Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Fastener Length: 1.044 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.500 inches
Head Height: 0.156 inches
Material Specification: Ams 5732 assn standard 1st material response or 5737 assn standard 1st material response or ams 5733 assn standard 2nd material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Special Test Features: Tensile strength at room temperature
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.544 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
