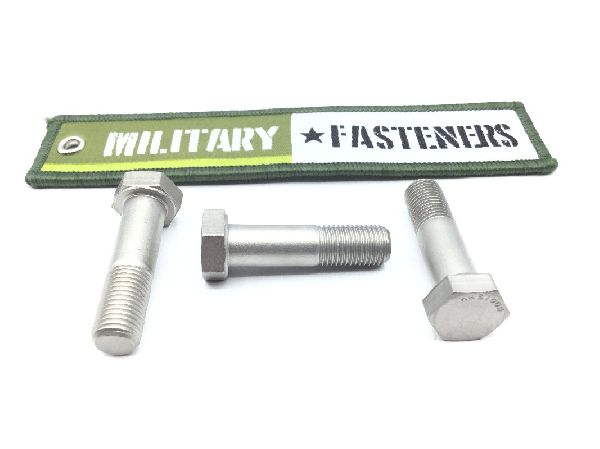

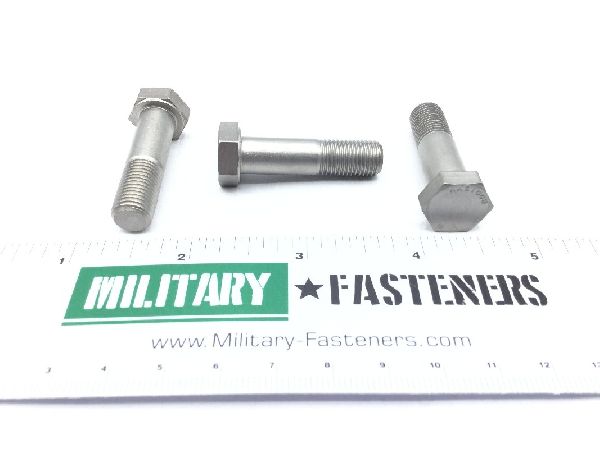

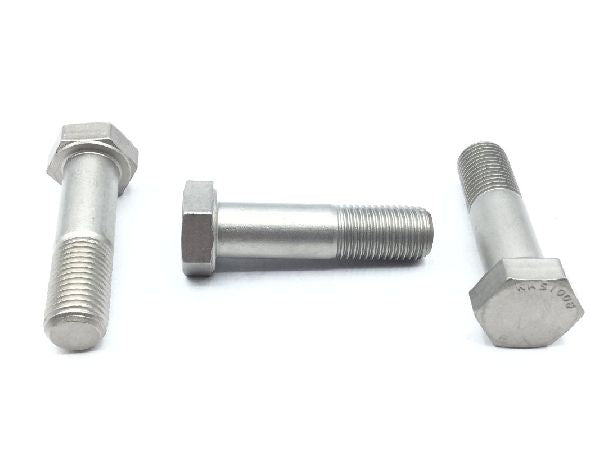

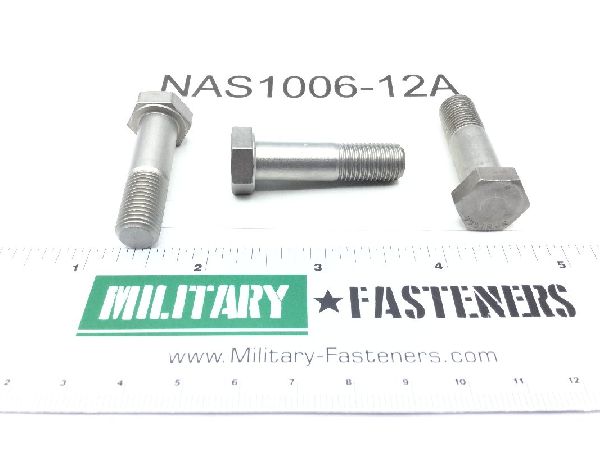

NAS1006-12A Machine Bolt

NSN: 5306-00-994-6994
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Fastener Length: 1.413 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.750 inches
Head Height: 0.219 inches
Material Specification: Ams5732 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Special Features: Tensile strength at room temperature
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.663 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.554 inches and 0.564 inches
