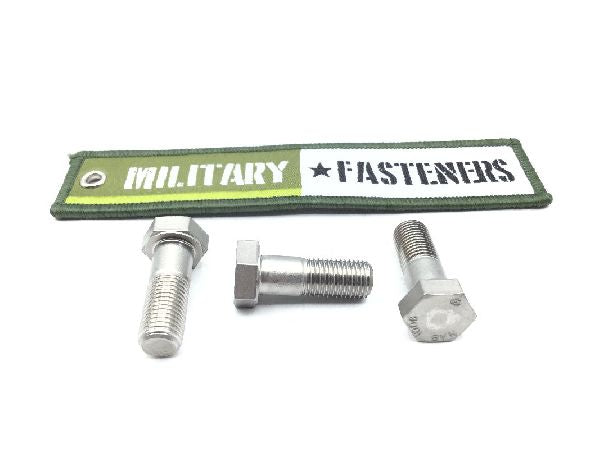

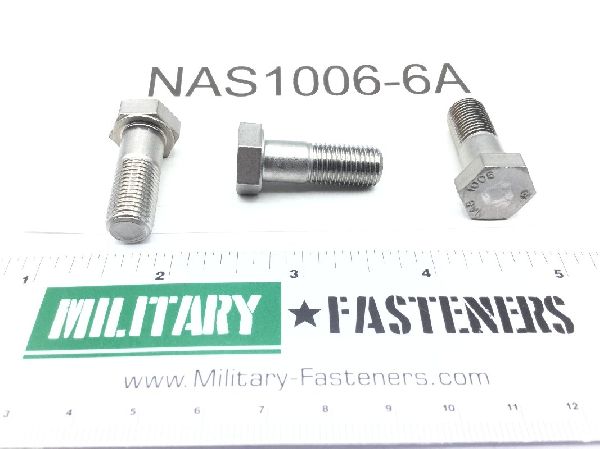

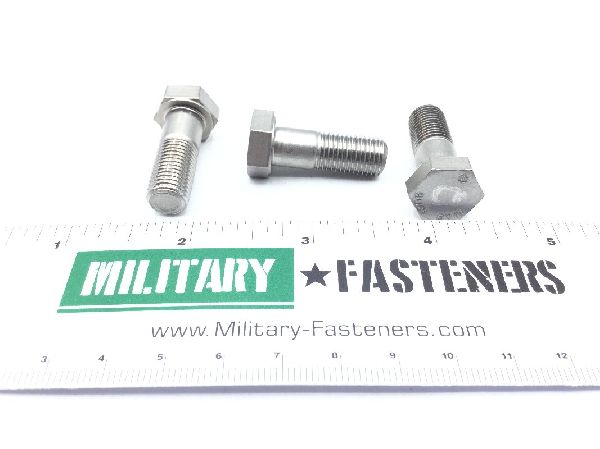

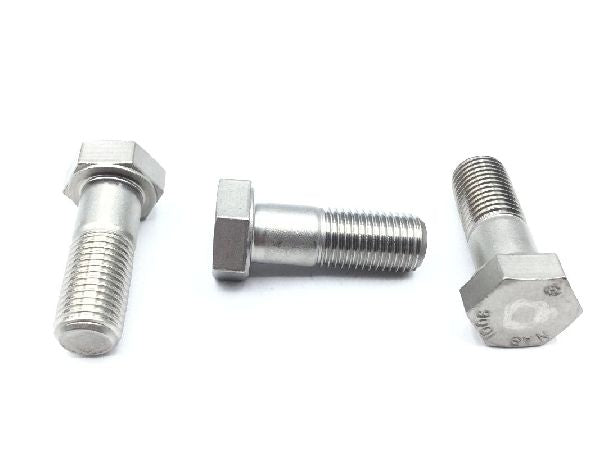

NAS1006-6A Machine Bolt

NSN: 5306-00-916-9328
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $20.10

Units per Pack 5

Price per Pack $100.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $100.50

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Surface Treatment

Mil-s-5002 military specification single treatment response

Thread Class

Fastener Length: 1.038 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 0.375 inches
Head Height: 0.219 inches
Material Specification: Ams 5732 assn standard 1st material response or ams 5737 assn standard 1st material response or ams 5733 assn standard 2nd material response
Min. Tensile Strength (psi): 140000 pounds per square inch
Special Features: Tensile strength at room temperature
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.663 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.554 inches and 0.564 inches
