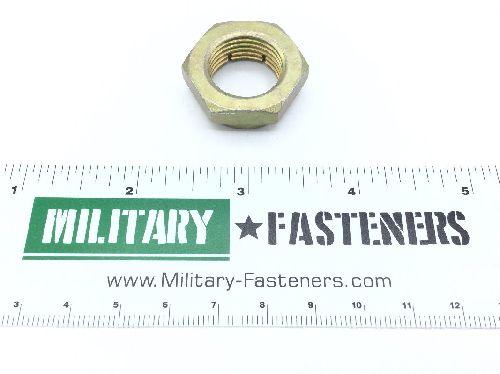

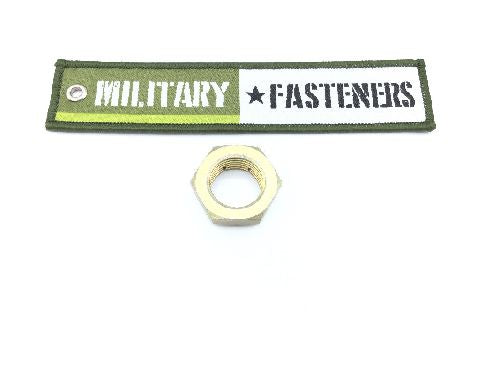

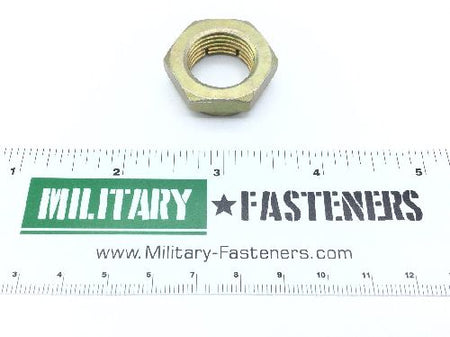

NAS1022A12 Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $17.67

Units per Pack 2

Price per Pack $35.34

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $35.34

Add item to quote

Material

Steel

Surface Treatment

Cl2 federal specification single treatment response ty2 qq-p-416

Thread Class

3b

Thread Quantity Per Inch (tpi)

16

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.750 inches

Bearing Surface Type: Washer faced
Countersink Angle: 120.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: 0.422 inches
Nut Style: Hexagon
Specification Data: 80205-nas1022 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Width Across Flats: Between 1.052 inches and 1.064 inches
