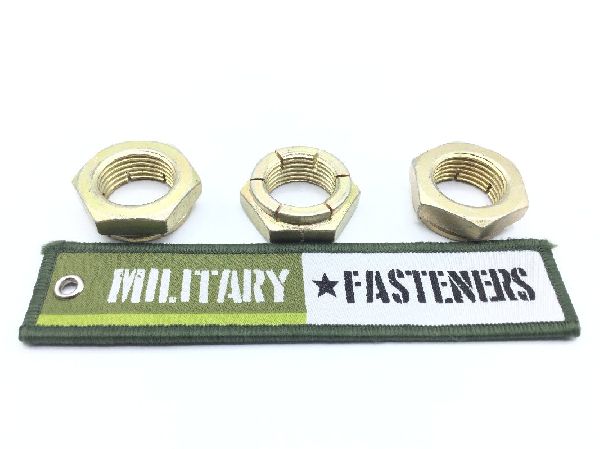

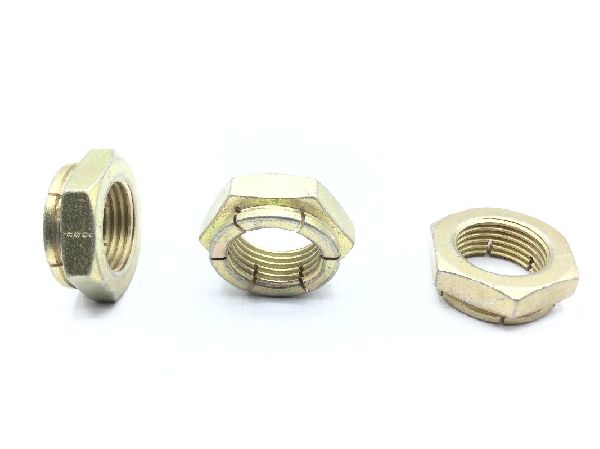

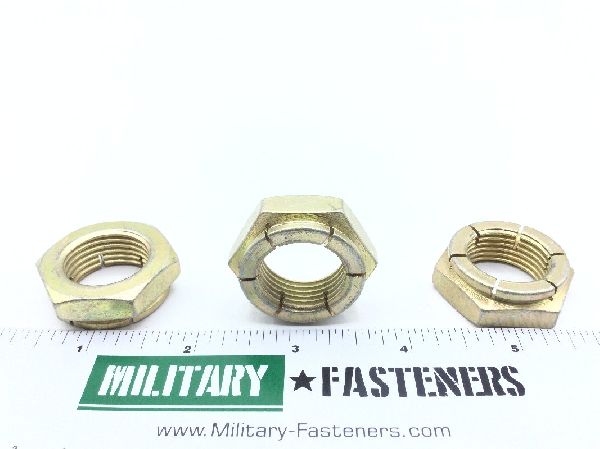

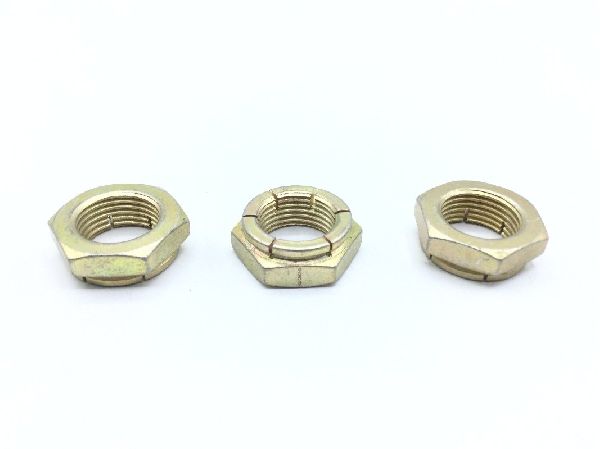

NAS1022A14 Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.875 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88 degrees
Hardness Rating: 46.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Height: 0.485 inches
Nut Style: Hexagon
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 14
Width Across Flats: Between 1.239 inches and 1.252 inches
Lubrication: Dry film lubricant
