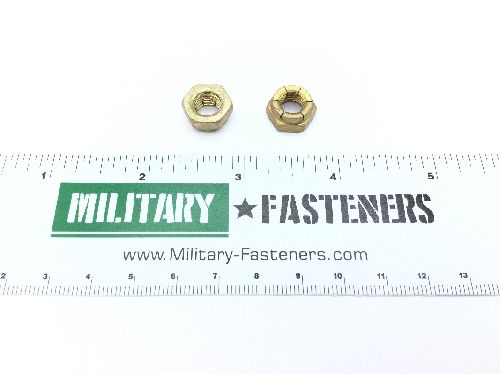

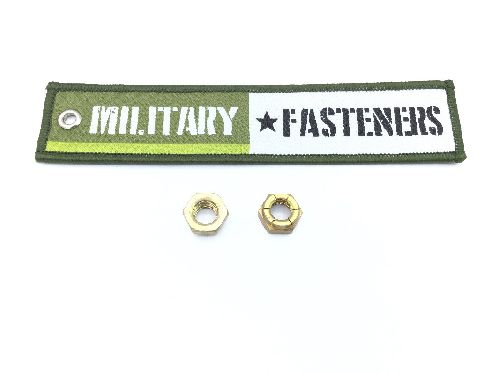

NAS1022A5 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.58

Units per Pack 10

Price per Pack $45.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.80

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 120.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: 0.266 centimeters
Nut Style: Hexagon
Specification Data: 80205-nas1022 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.492 inches and 0.502 inches
Lubrication: Dry film lubricant
