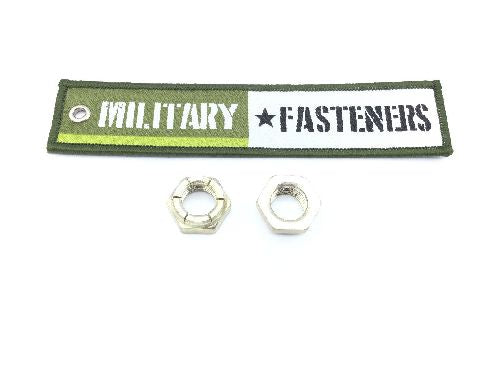

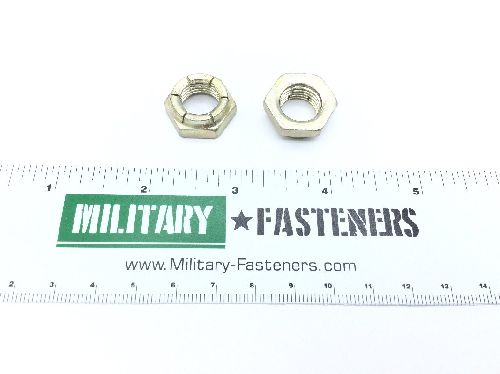

NAS1022A8 Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Bearing Surface Type: Washer faced
Locking Feature: Prevailing torque all metal design
Nut Height: 0.328 inches
Nut Style: Hexagon
Tempurature Rating: 550.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.741 inches and 0.752 inches
