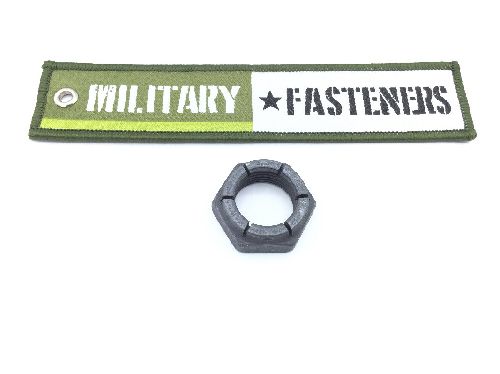

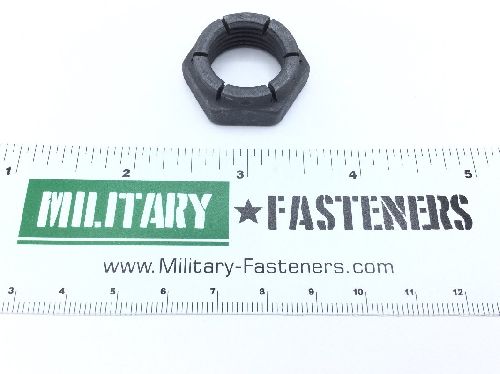

NAS1022AM12 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $6.58

Units per Pack 10

Price per Pack $65.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $65.80

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.750 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: 0.855 mils and 0.891 centimeters
Nut Style: Hexagon
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 16
Width Across Flats: Between 1.052 inches and 1.064 inches
Lubrication: Dry film lubricant
