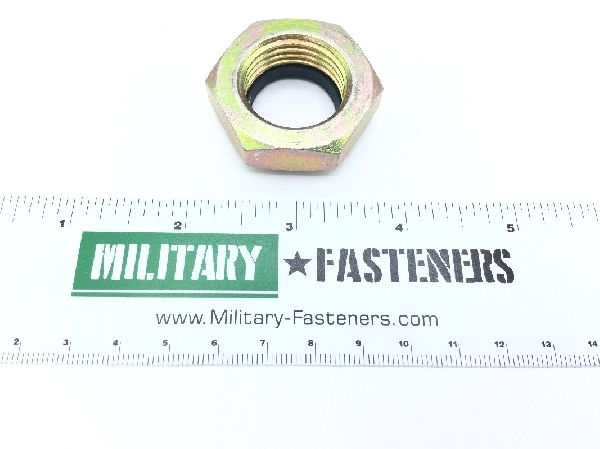

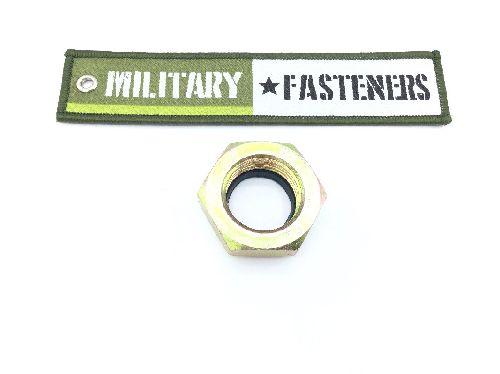

NAS1022N16 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $9.01

Units per Pack 5

Price per Pack $45.05

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.05

Add item to quote

Material

Plastic polyamide locking insert

Surface Treatment

Cl 2 federal specification all treatment responses except insert type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

1.000 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Hardness Rating: 35.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.578 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 12
Width Across Flats: Between 1.427 inches and 1.440 inches
Lubrication: Soluble lubricant
