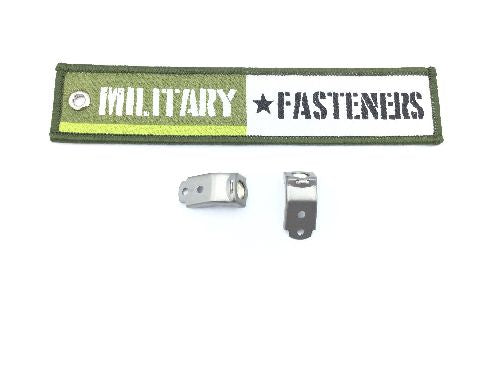

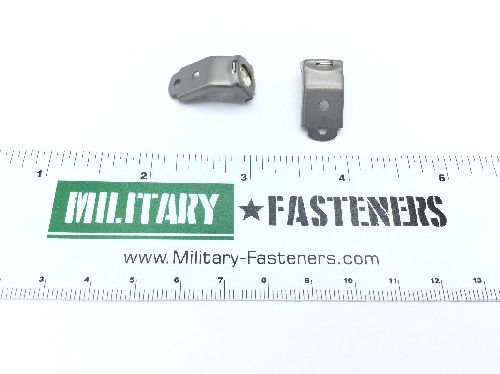

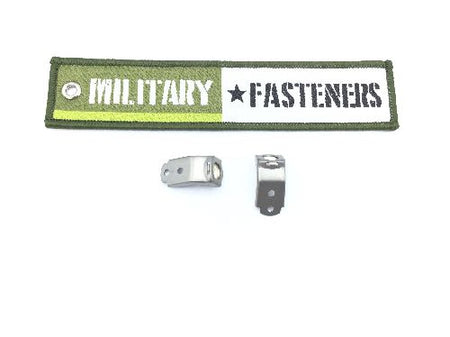

NAS1033C08 Self-Locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: 0.250 inches
Counterbore Diameter: 0.170 inches nut and 0.185 inches nut
Distance From Base To Center Of Aperture: 0.281 inches
Distance From Mounting Hole Center To Base: 0.484 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.098 mils and 0.103 centimeters
Nut Counterbore Depth: 0.070 inches nut
Nut Height: 0.343 centimeters
Nut Length: 0.906 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.075 centimeters
Plate Width: 0.619 inches
Precious Material: Silver
Specification Data: 80205-nas1033 professional/industrial association standard
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
