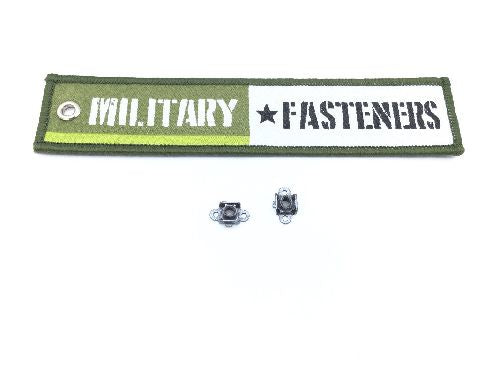

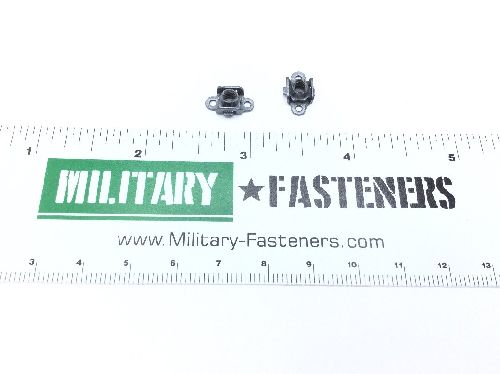

NAS1068RA06 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Type 2 federal specification all treatment responses qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.138 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.341 inches and 0.345 inches
Distance From Aperture Center To Mounting Hole Center: 0.171 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 36.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.066 inches and 0.071 inches
Nut Height: 0.171 inches
Nut Length: 0.545 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: 0.357 inches
Specification Data: 80205-nas1068 professional/industrial association standard
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
