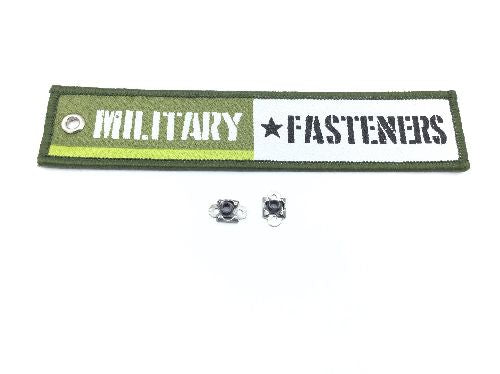

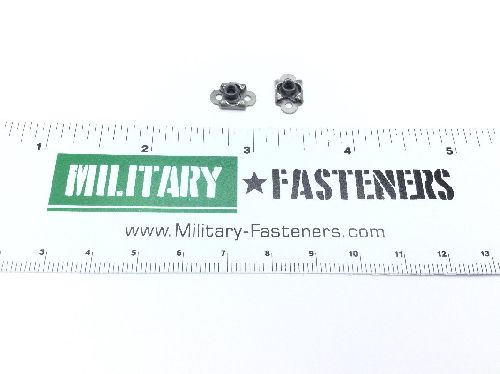

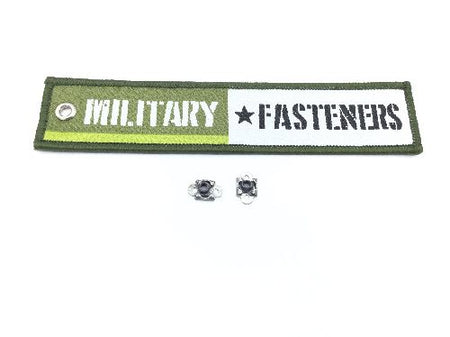

NAS1068RC04M Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $7.72

Units per Pack 10

Price per Pack $77.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $77.20

Add item to quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.294 inches and 0.298 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.147 inches and 0.149 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.066 inches and 0.071 inches
Nut Height: 0.153 inches
Nut Length: 0.498 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: 0.315 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Lubrication: Dry film lubricant
