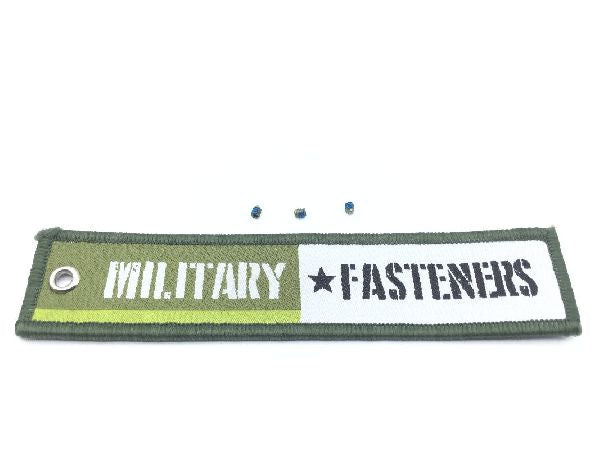

NAS1081-04A2 Setscrew (4)

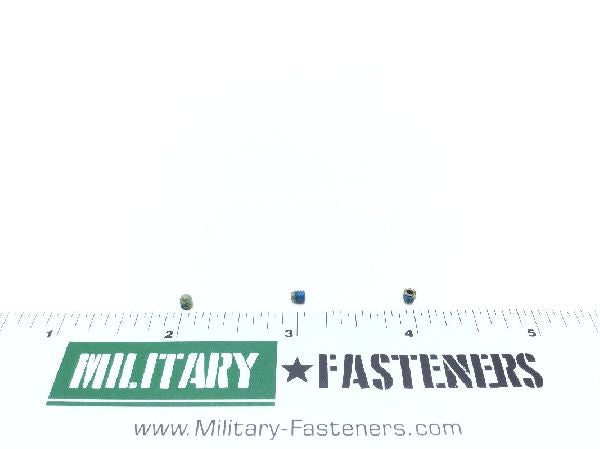

NAS1081-04A2 Setscrew (5)

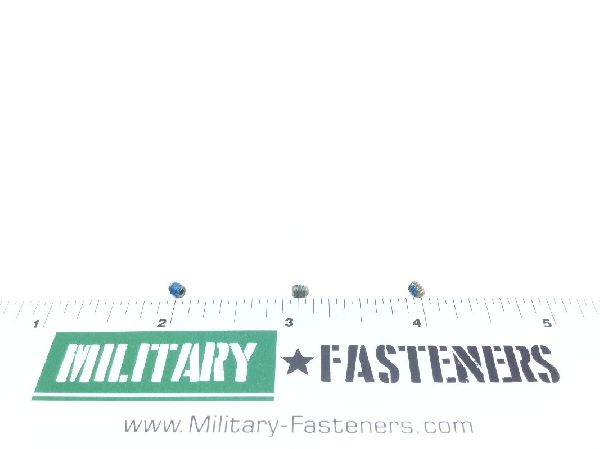

NAS1081-04A2 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1081-04A2 Setscrew

NSN: 5305-01-463-6904
Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Headless (setscrew)

Material

Steel

Surface Treatment

cl2 federal specification single treatment response ty ii qq-p-416

Thread Class

3a

Fastener Length: 0.125 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Point Diameter: Between 0.051 inches and 0.061 inches
Point Style: Flat
Specification Data: 80205-nas1081 professional/industrial association standard
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.050 inches and 0.051 inches
