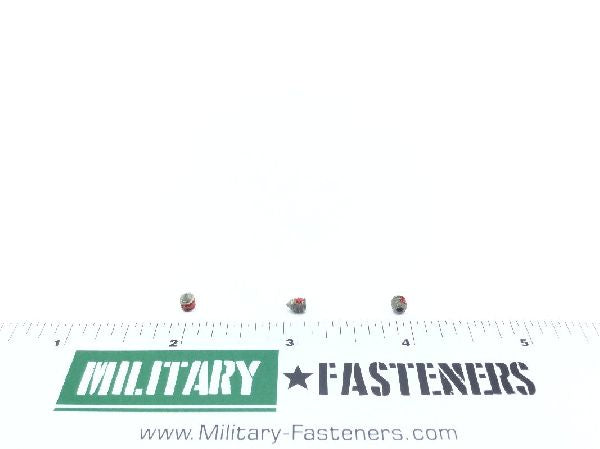

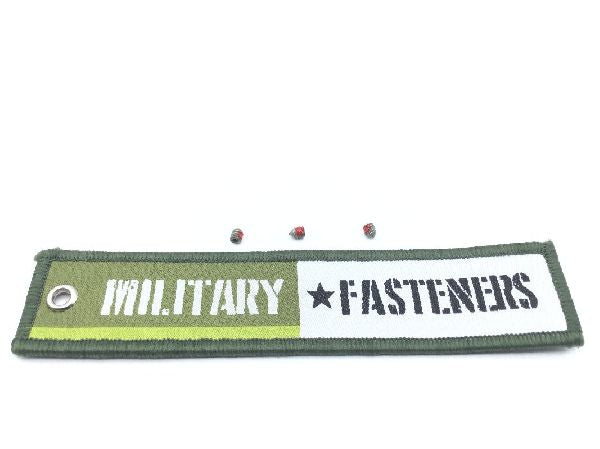

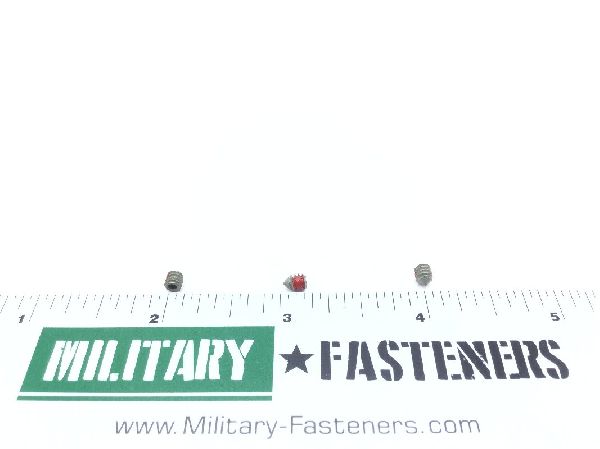

NAS1081-06B3 Setscrew

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Headless (setscrew)

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.178 inches and 0.198 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Locking Feature: Pellet threads or strip threads
Material Specification: 66 federal standard all material responses
Point Style: Cone
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.136 inches and 0.156 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.063 inches and 0.064 inches
