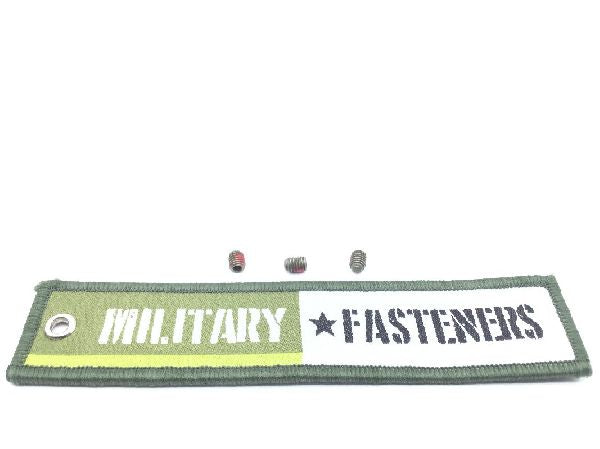

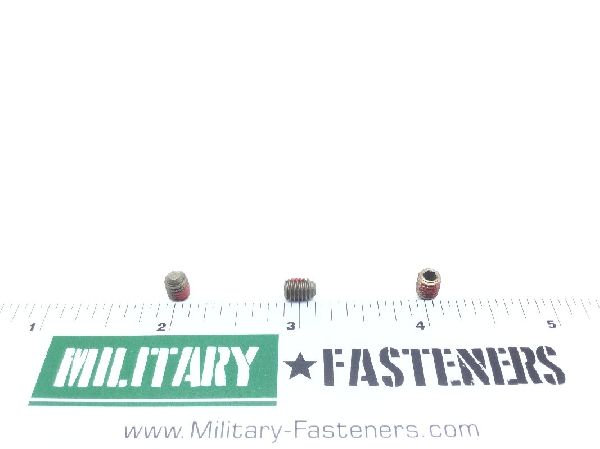

NAS1081-3A4 Setscrew (5)

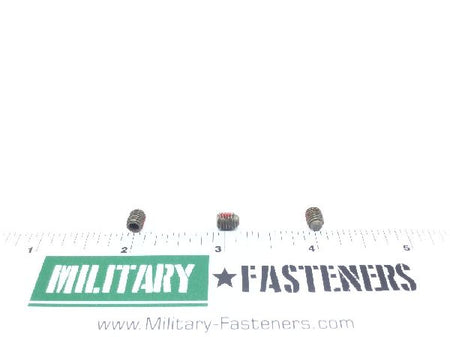

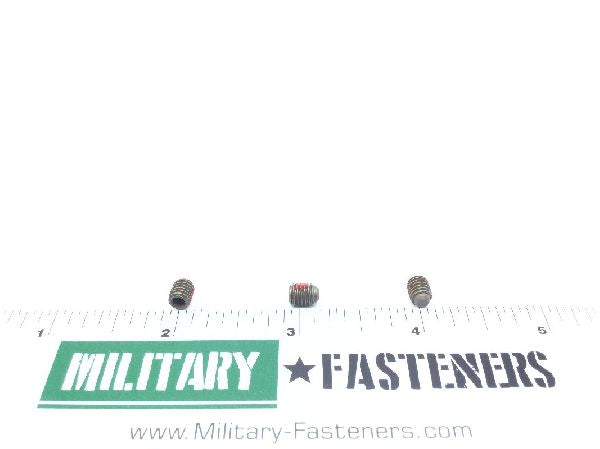

NAS1081-3A4 Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1081-3A4 Setscrew

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.85

Units per Pack 10

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Headless

Material

Steel comp

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3a

Fastener Length: 0.250 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Locking Feature: Pellet threads or strip threads
Material Specification: 66 federal standard all material responses
Point Style: Flat
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
