NAS1081-3D4L Setscrew

NAS1081-3D4L Setscrew (2)

NAS1081-3D4L Setscrew (3)

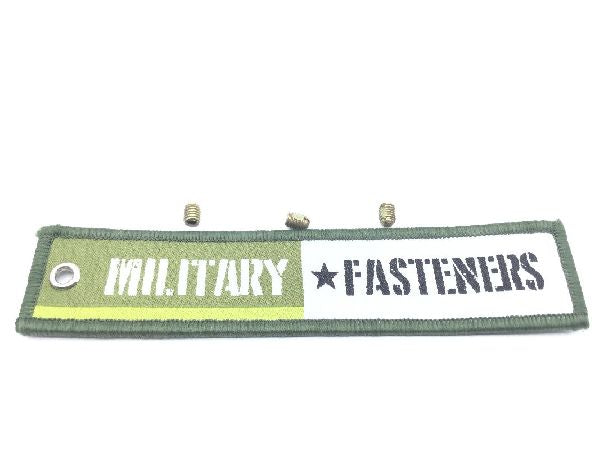

NAS1081-3D4L Setscrew (4)

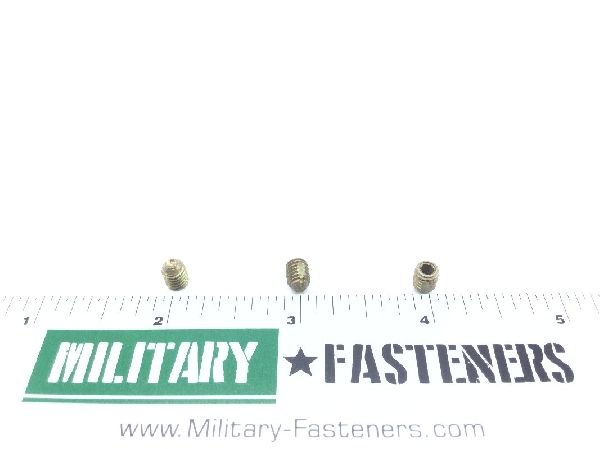

NAS1081-3D4L Setscrew (5)

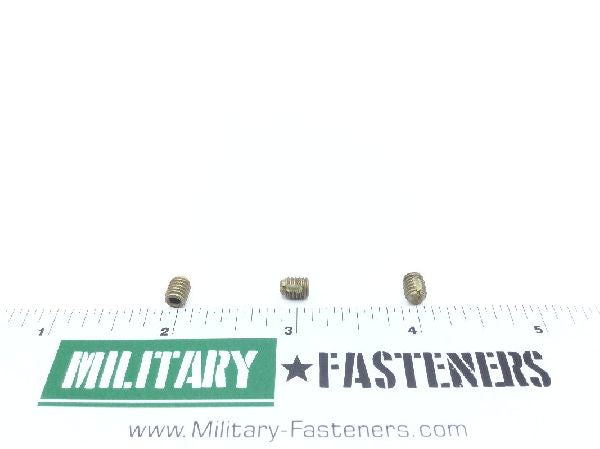

NAS1081-3D4L Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1081-3D4L Setscrew

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $3.81

Units per Pack 10

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 4037 or steel comp 4137 or steel comp 4140 or steel comp 8630 or steel comp 8740

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

3a

Fastener Length: Between 0.240 inches and 0.260 inches
Hardness Rating: 45.0 rockwell c and 53.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Point Style: Cup
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.240 inches and 0.260 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
