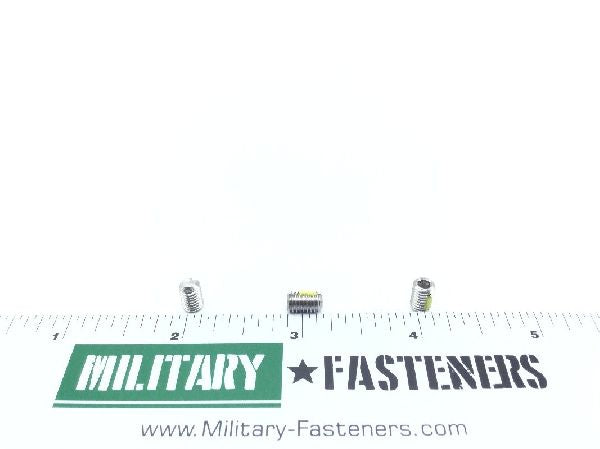

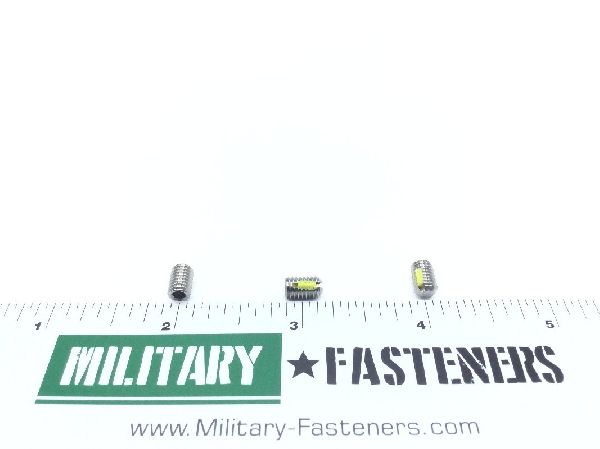

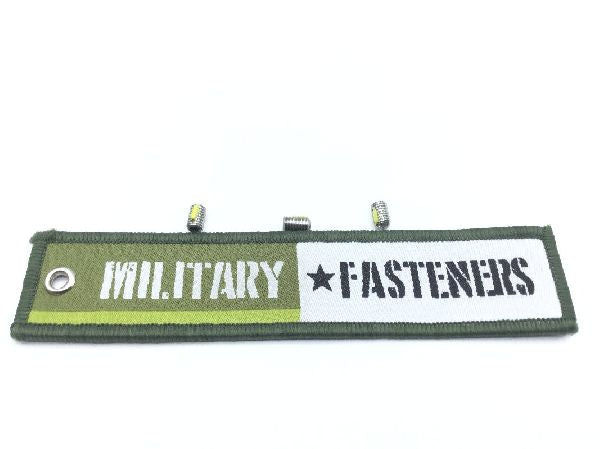

NAS1081C3A5L Setscrew

NAS1081C3A5L Setscrew (2)

NAS1081C3A5L Setscrew (3)

NAS1081C3A5L Setscrew (4)

NAS1081C3A5L Setscrew (5)

NAS1081C3A5L Setscrew (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1081C3A5L Setscrew

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Headless (setscrew)

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3a

Fastener Length: 0.312 inches
Internal Drive Style: Hexagon
Locking Feature: Strip threads
Material Specification: 66 federal standard all material responses
Point Style: Flat
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.312 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
