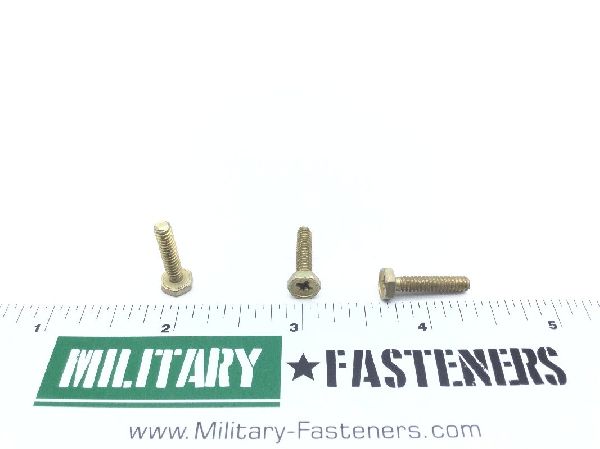

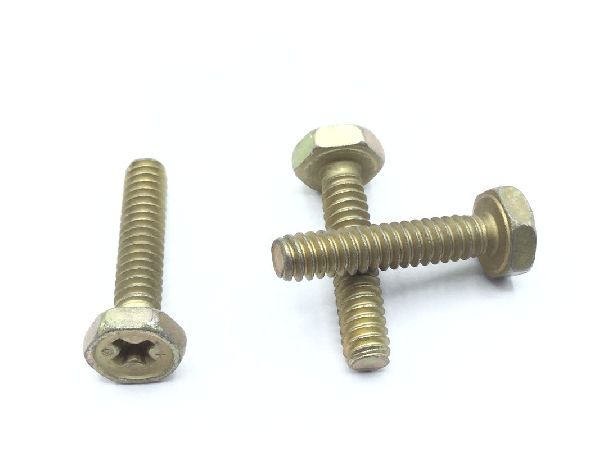

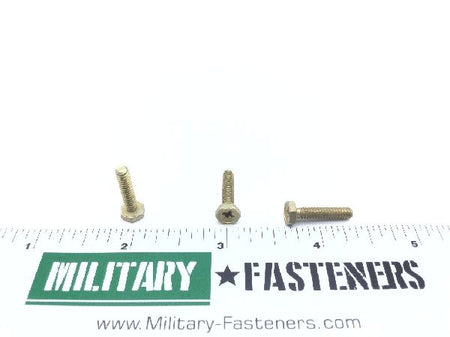

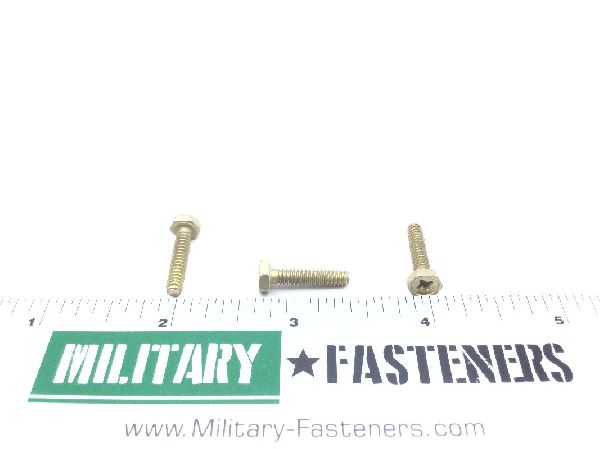

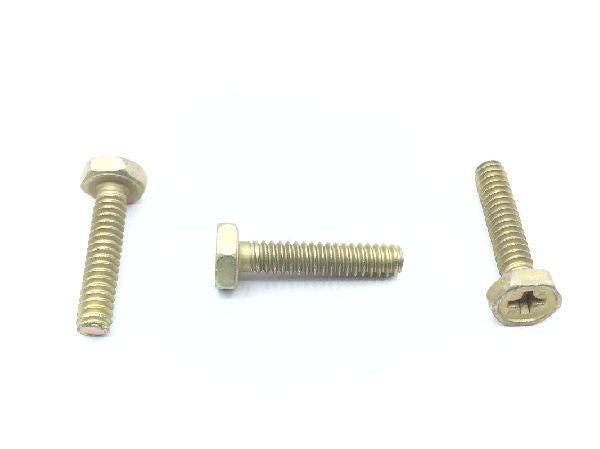

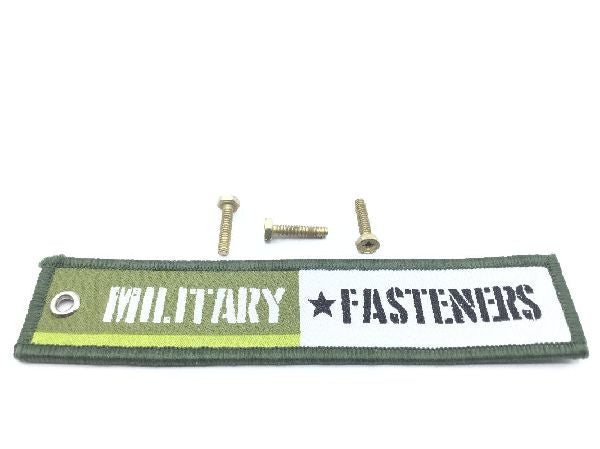

NAS1096-1-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.609 inches and 0.656 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.080 inches and 0.095 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630 or steel comp 4037
Screw Material Specification: Mil-s-6050 military specification 1st material response or ams6300 assn standard 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 class 2 federal specification single treatment response qq-p-416
Specification Data: 80205-nas1096 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.547 inches and 0.656 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.241 inches and 0.250 inches
