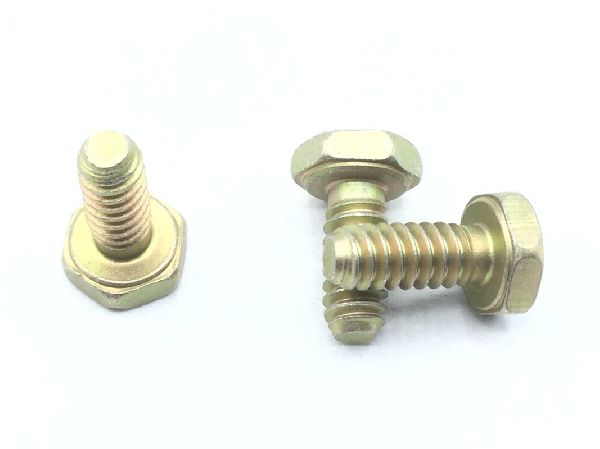

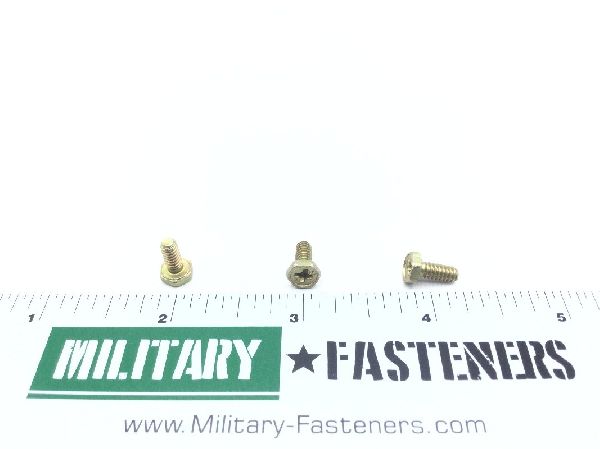

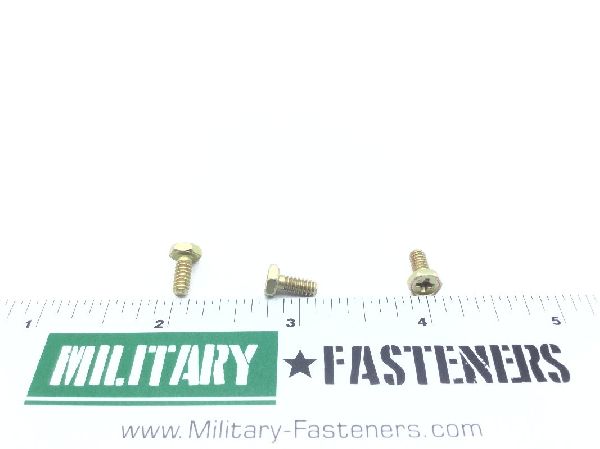

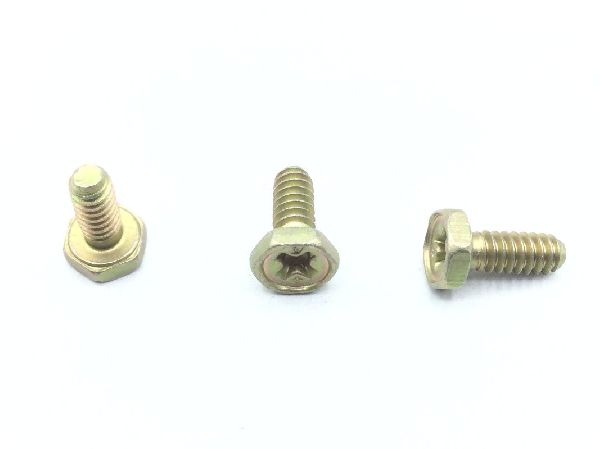

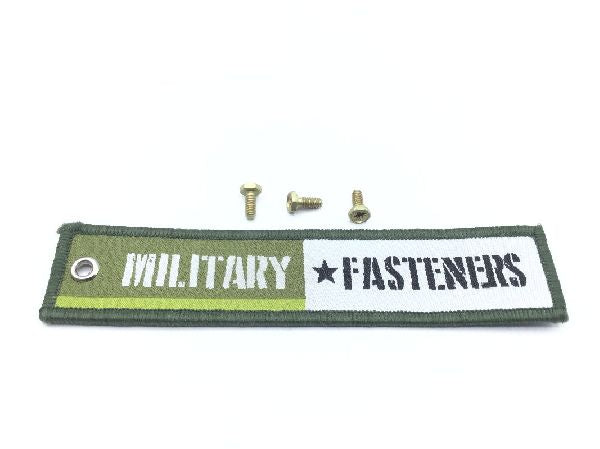

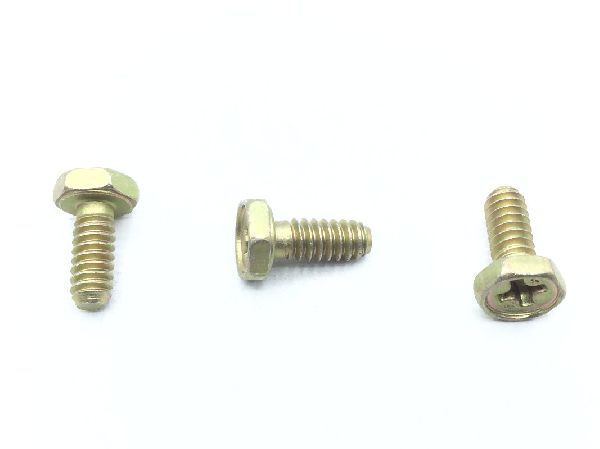

NAS1096-1-5 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Fastener Length: Between 0.296 inches and 0.343 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.080 inches and 0.095 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.232 inches and 0.311 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.241 inches and 0.250 inches
