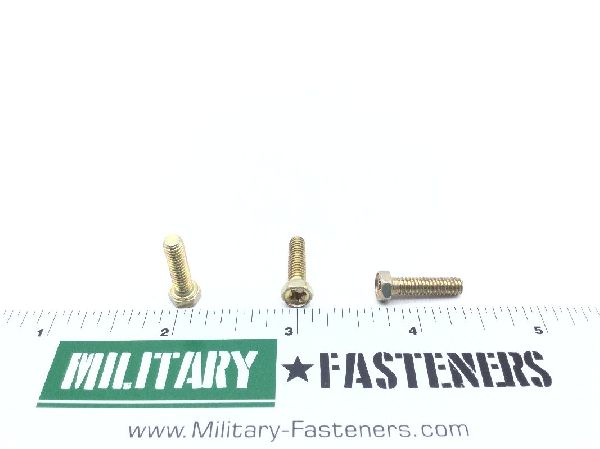

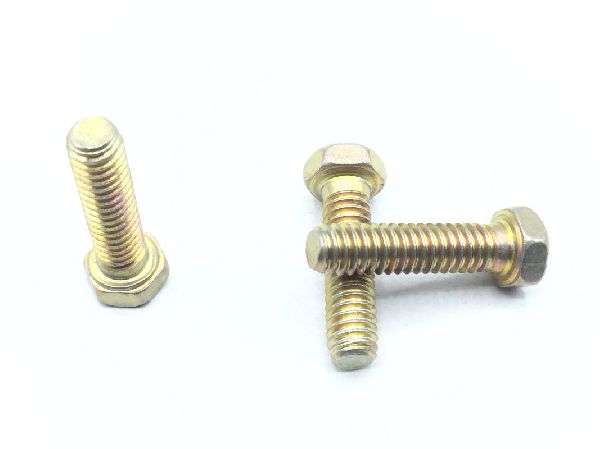

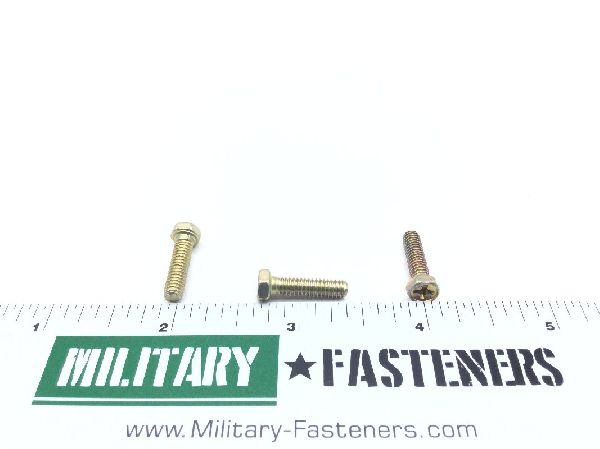

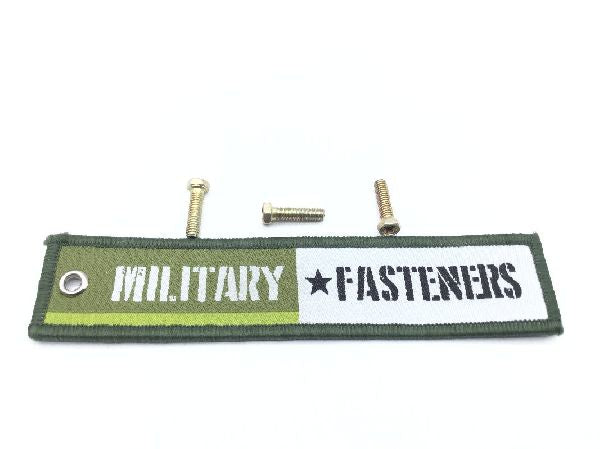

NAS1096-2-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.49

Units per Pack 100

Price per Pack $49.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $49.00

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 0.609 inches and 0.656 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.096 inches and 0.110 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8630
Screw Material Specification: Mil-s-6050 military specification single material response or an-s-9 military standard single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Cl 3 federal specification single treatment response type 1 qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.483 inches and 0.624 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.241 inches and 0.250 inches
