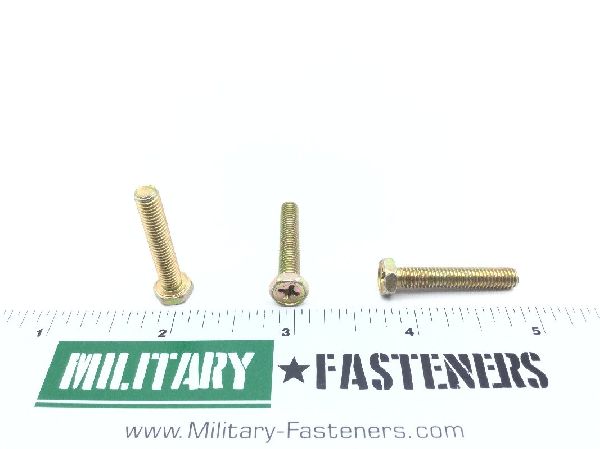

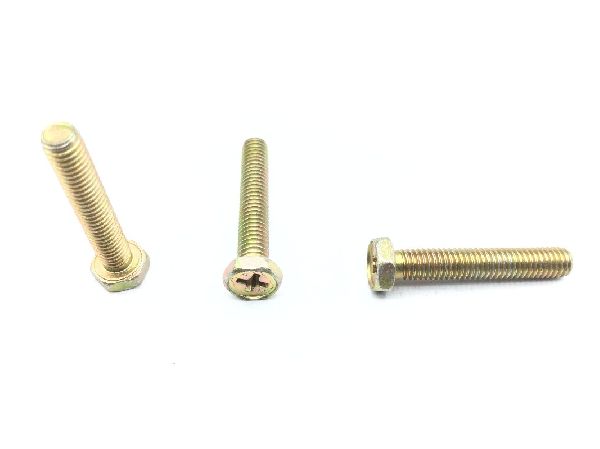

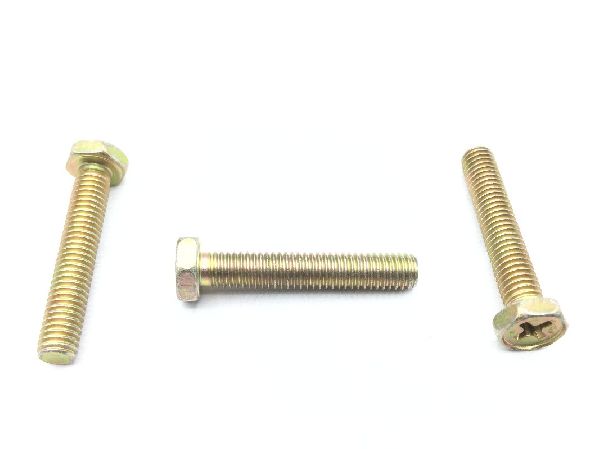

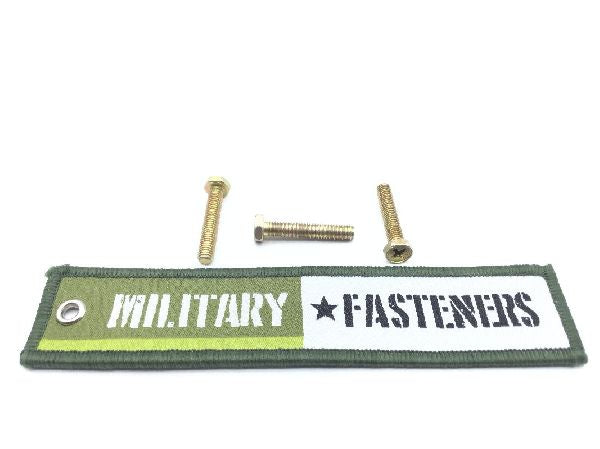

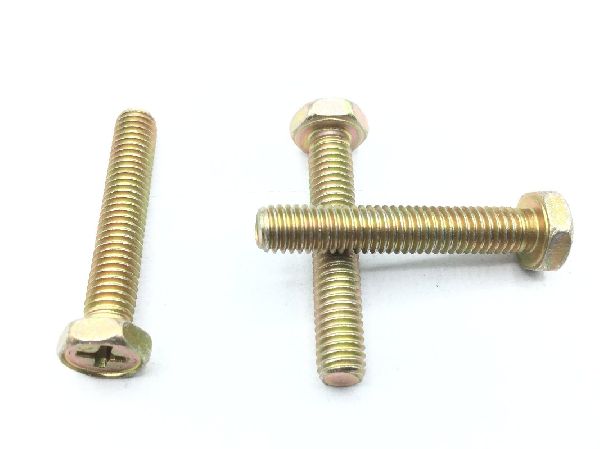

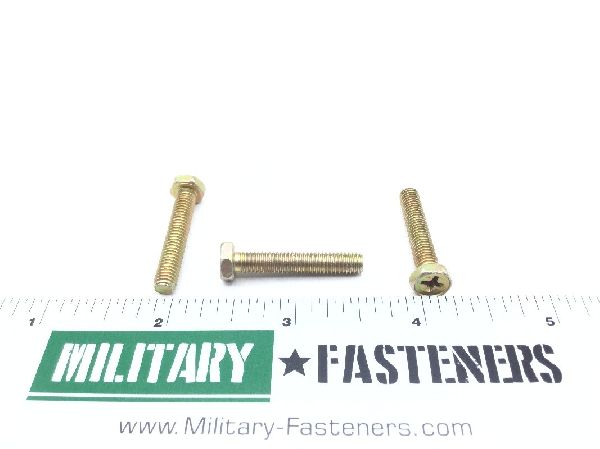

NAS1096-3-17 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Hexagon

Thread Class

Fastener Length: Between 1.046 inches and 1.093 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.105 inches and 0.120 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 4037 or steel comp 8630
Screw Material Specification: Ams 6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 3 federal specification single treatment response type 2 qq-p-416
Specification Data: 80205-nas1906 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.975 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.302 inches and 0.313 inches
