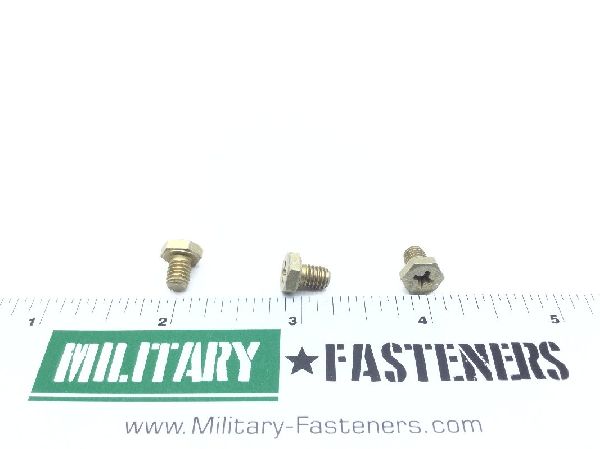

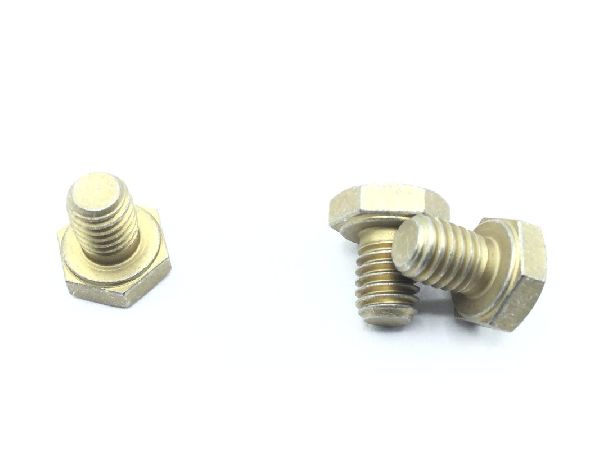

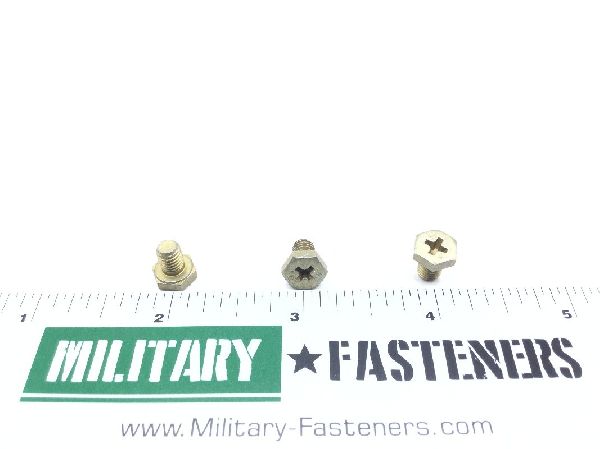

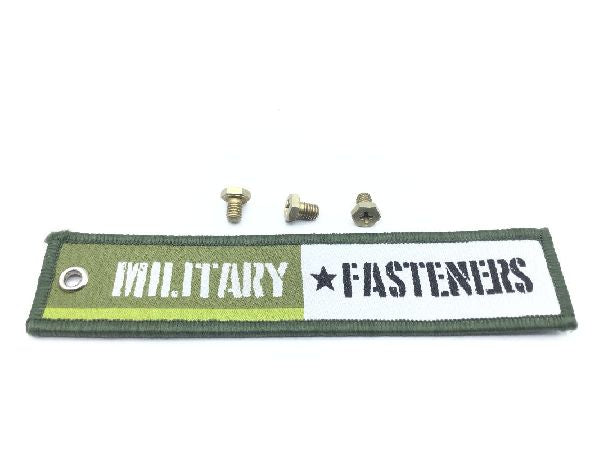

NAS1096-3-4 Machine Screw
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- Between 0.234 inches and 0.281 inches
- Head Height
- Between 0.105 inches and 0.120 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 125000 pounds per square inch
- Screw Material
- Steel comp 4037 or steel comp 8630
- Screw Material Specification
- Ams 6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 type 2 cl 3 federal specification single treatment response
- Specification Data
- 80205-nas1096 professional/industrial association standard
- Thread Diameter
- 0.190 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.140 inches and 0.187 inches
- Thread Qty Per Inch (tpi)
- 32
- Thread Series Designator
- Unf (fine thread)
- Width Between Flats
- Between 0.302 inches and 0.313 inches
