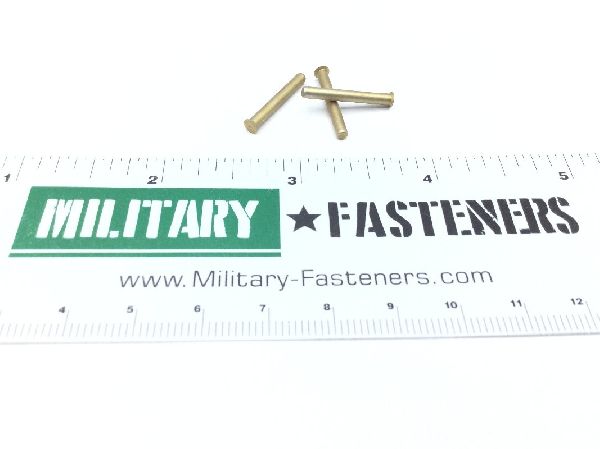

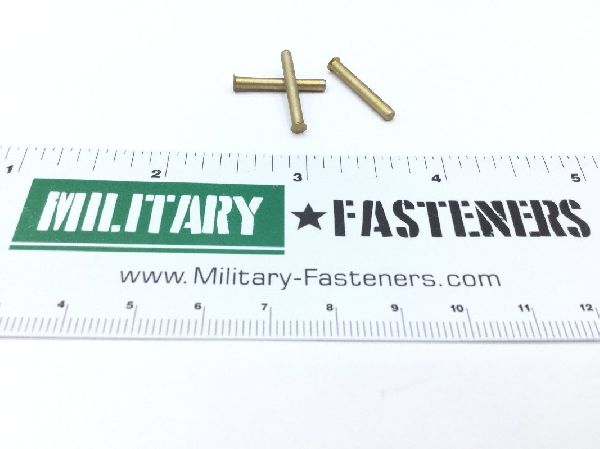

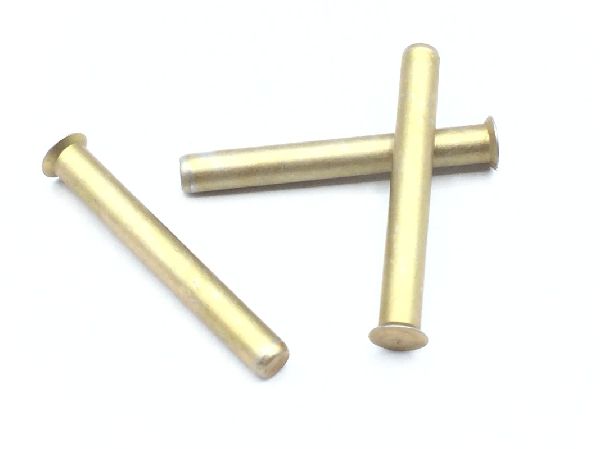

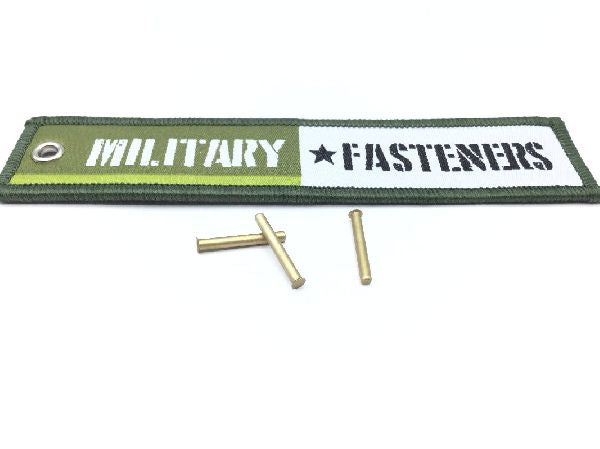

NAS1097AD3-12 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $59.52

Units per Pack 1

Price per Pack $59.52

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $59.52

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Countersink Height: 0.021 inches
Fastener Length: Between 0.740 inches and 0.760 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: 0.1478 inches
Head Minor Diameter: 0.086 mils and 0.096 centimeters
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.093 inches and 0.096 inches
Shank Style: Straight w/radius chamfered tip
Specification Data: 80205-nas1097 professional/industrial association standard
