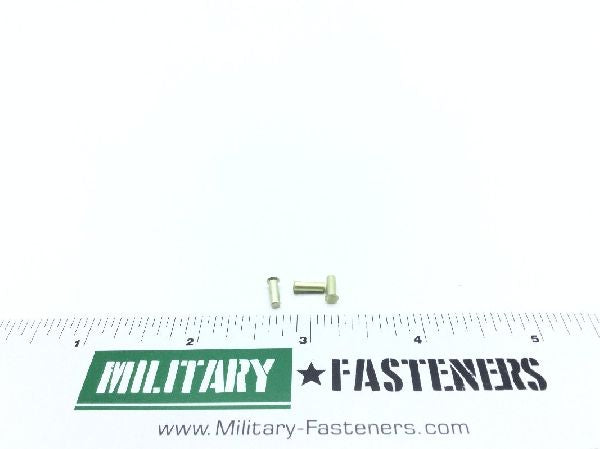

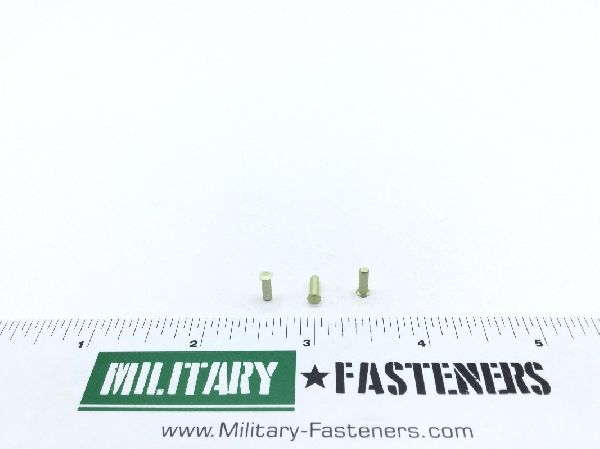

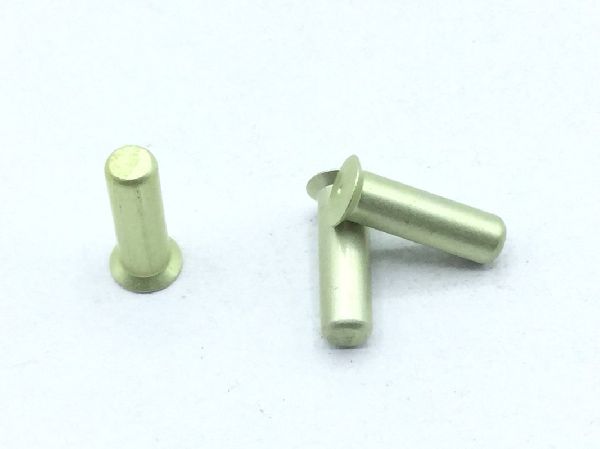

NAS1097AD3-5D Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $0.07

Units per Pack 500

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 500

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy

Surface Treatment

Cl1 military specification single treatment response ty2 mil-a-8625

Countersink Angle: Between 70.0 degrees and 130.0 degrees
Countersink Height: Between 0.0089 inches and 0.0123 inches
Fastener Length: Between 0.302 inches and 0.322 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: Between 0.1263 inches and 0.1478 inches
Head Minor Diameter: 0.086 mils and 0.096 centimeters
Heat Treatment: T-4 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.093 inches and 0.096 inches
Shank Style: Straight with radius chamfered tip
Specification Data: 80205-nas1097 professional/industrial association standard
