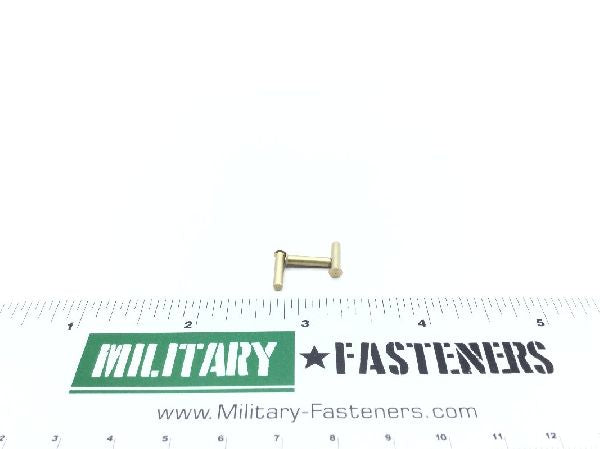

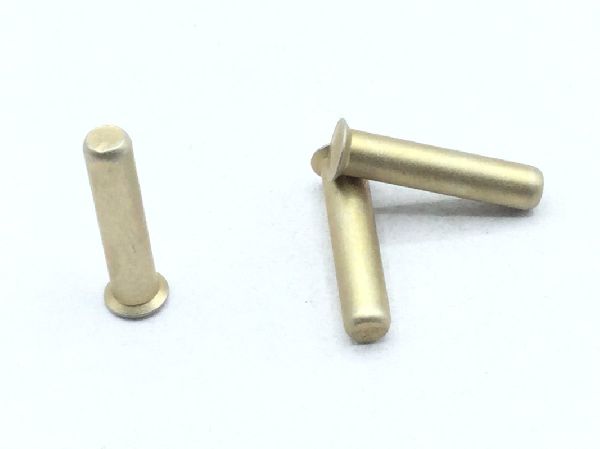

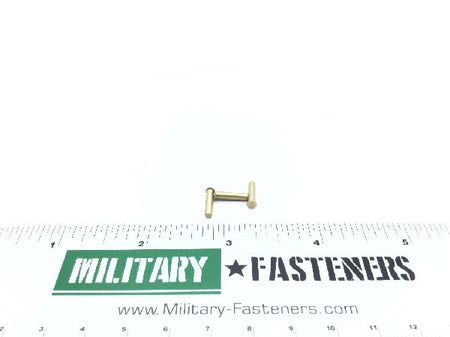

NAS1097AD3-7 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-c-5541 military specification single treatment response

Countersink Angle: 100.0 degrees
Countersink Height: 0.021 inches
Fastener Length: 0.438 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: Between 0.126 inches and 0.148 inches
Head Minor Diameter: 0.086 mils and 0.096 centimeters
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: 0.094 inches
Shank Style: Straight
Specification Data: 80205-nas1097 professional/industrial association standard
