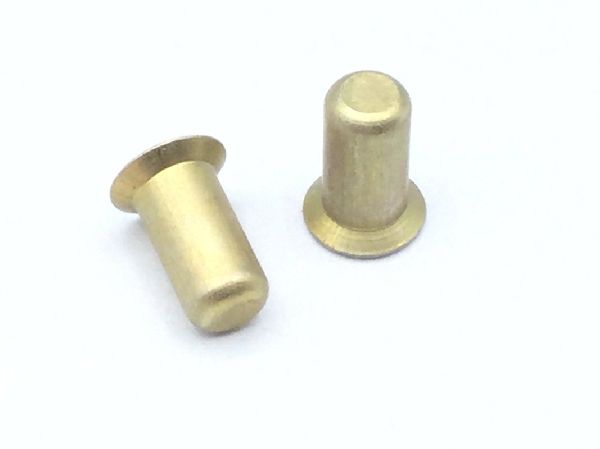

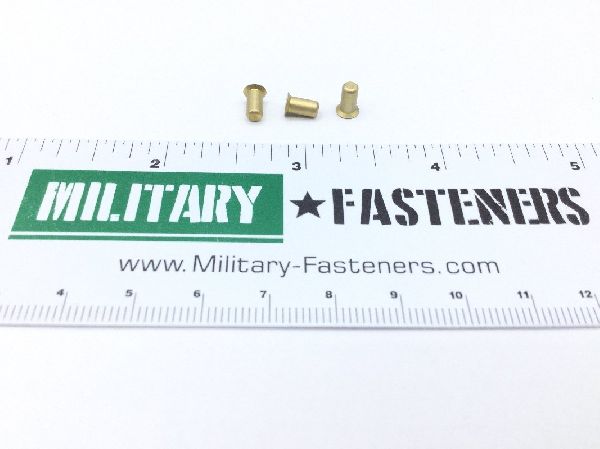

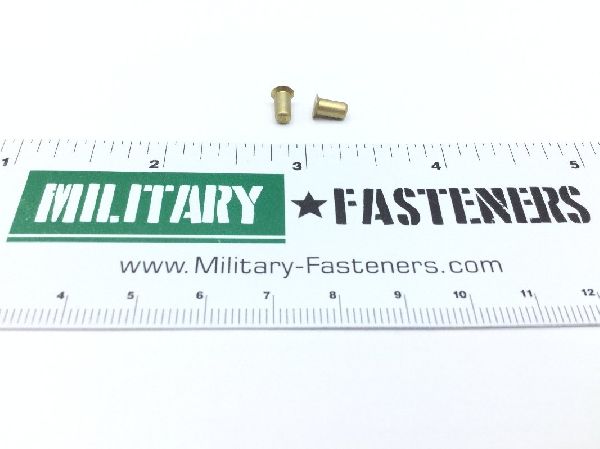

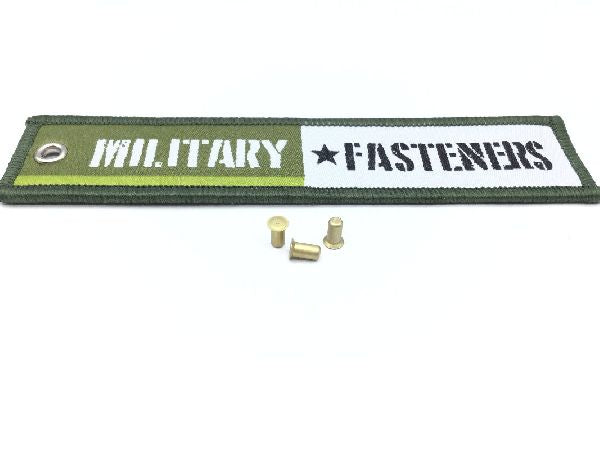

NAS1097AD4-4 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Price per Unit $65.07

Units per Pack 1

Price per Pack $65.07

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $65.07

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: 100 degrees
Countersink Height: 0.029 inches
Fastener Length: Between 0.24 inches and 0.26 inches
Grip Length: 0.062 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: Between 0.188 inches and 0.196 inches
Head Minor Diameter: Between 0.134 inches and 0.144 inches
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.127 inches
Shank Style: Straight
Shear Strength: 26000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
