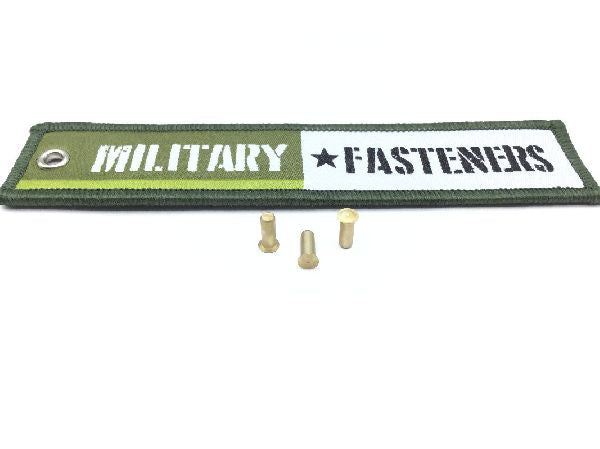

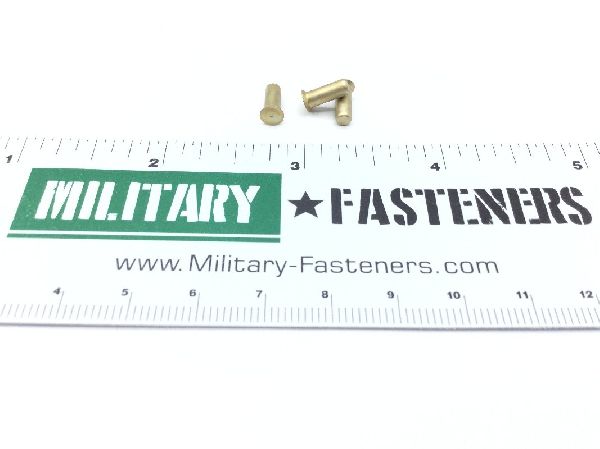

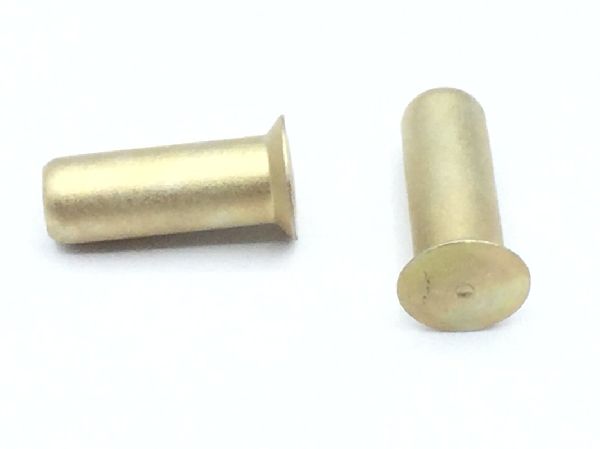

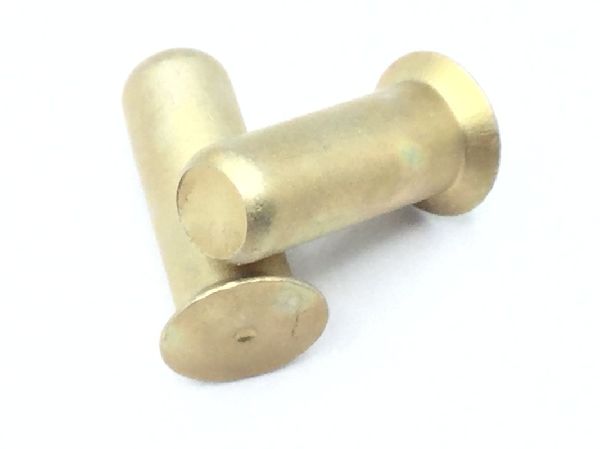

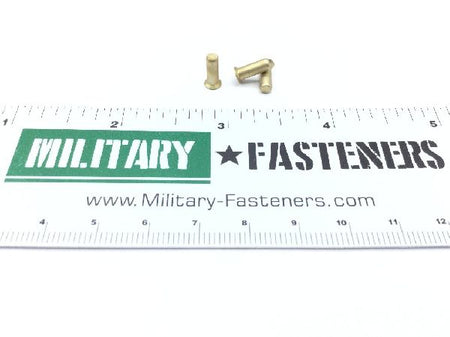

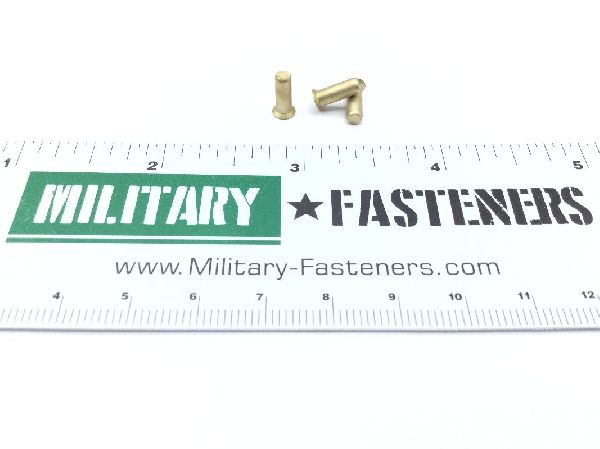

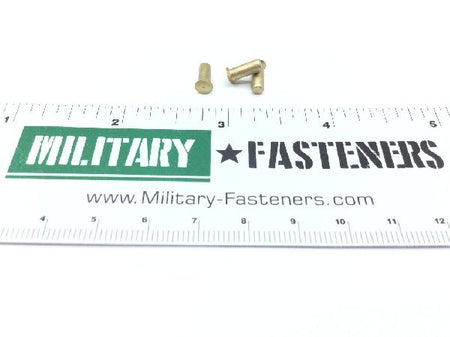

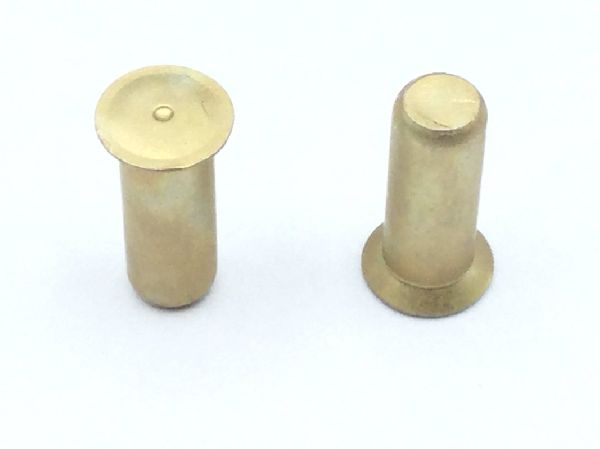

NAS1097AD4-5.5 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 70.0 degrees and 130.0 degrees
Countersink Height: 0.0286 inches
Fastener Length: Between 0.333 inches and 0.353 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: 0.1957 inches
Head Minor Diameter: 0.134 mils and 0.144 centimeters
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.124 inches and 0.127 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
