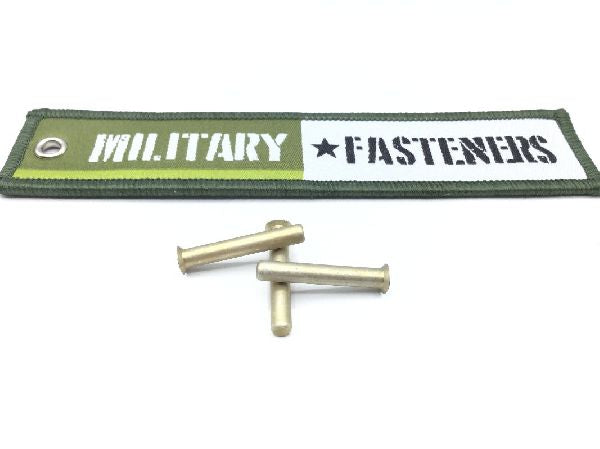

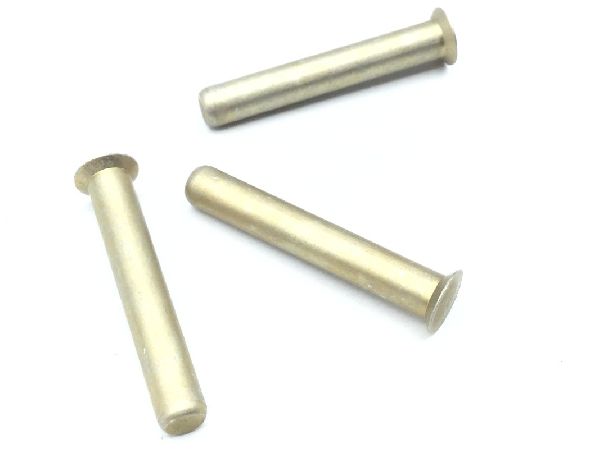

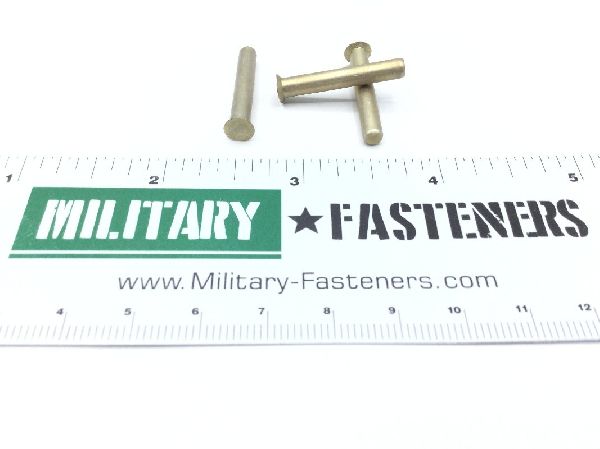

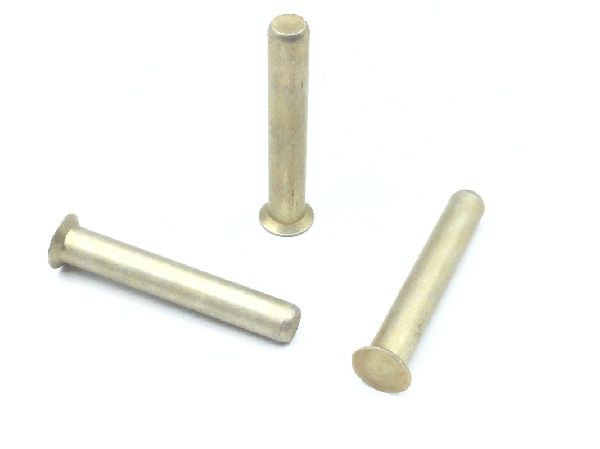

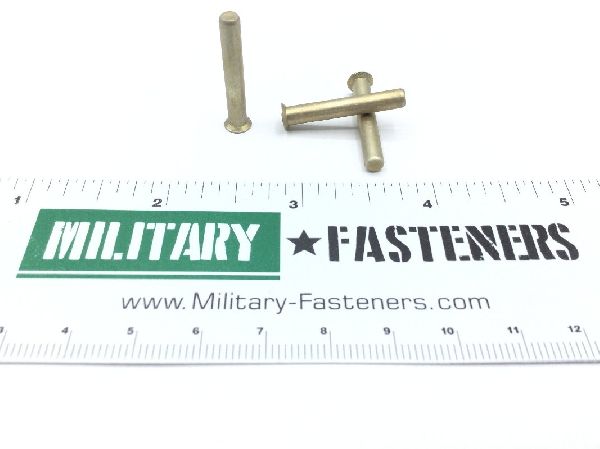

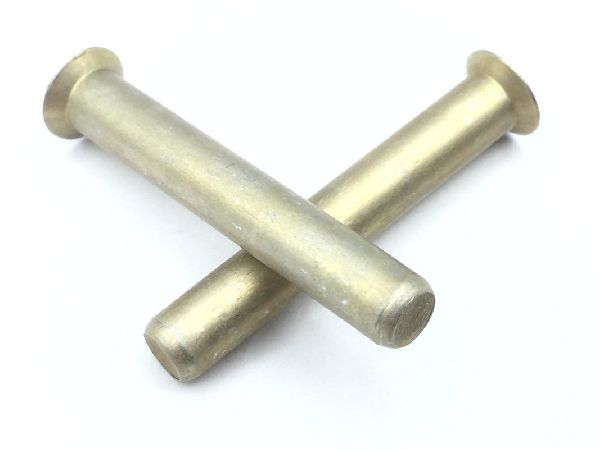

NAS1097AD5-16 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $46.40

Units per Pack 1

Price per Pack $46.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $46.40

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: 100.0 degrees
Countersink Height: 0.0372 inches
Fastener Length: Between 0.990 inches and 1.010 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: Between 0.2251 inches and 0.2469 inches
Head Minor Diameter: Between 0.185 inches and 0.195 inches
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.155 inches and 0.158 inches
Shank Style: Straight
Shear Strength: 26000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
