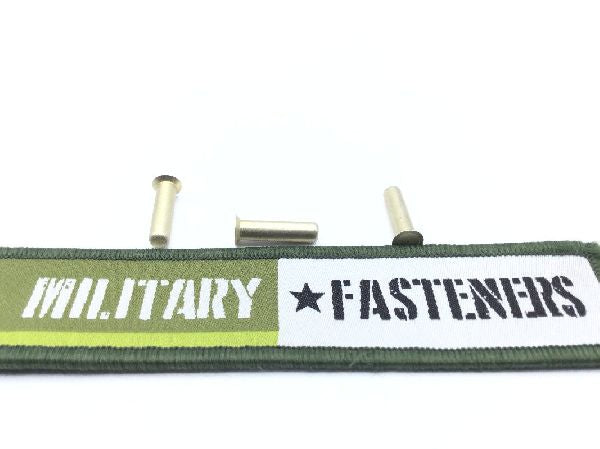

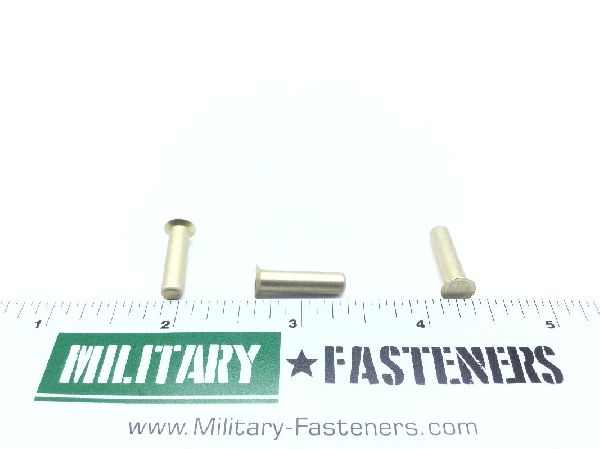

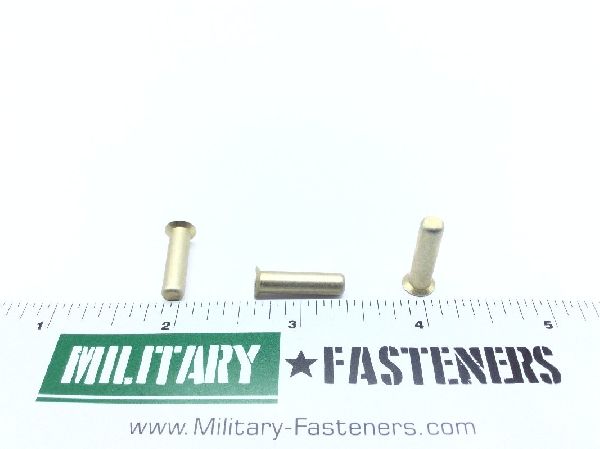

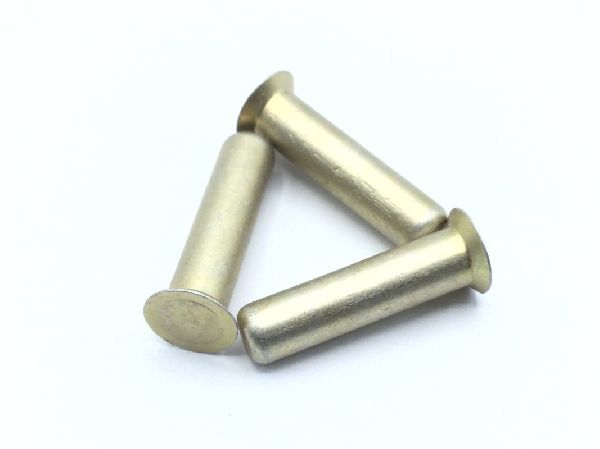

NAS1097AD6-12 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Countersink Height: 0.046 inches
Fastener Length: Between 0.740 inches and 0.760 inches
Head Height: 0.004 mils and 0.006 centimeters
Head Major Diameter: 0.3016 centimeters
Head Minor Diameter: 0.198 mils and 0.208 centimeters
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: 0.186 mils and 0.189 centimeters
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
