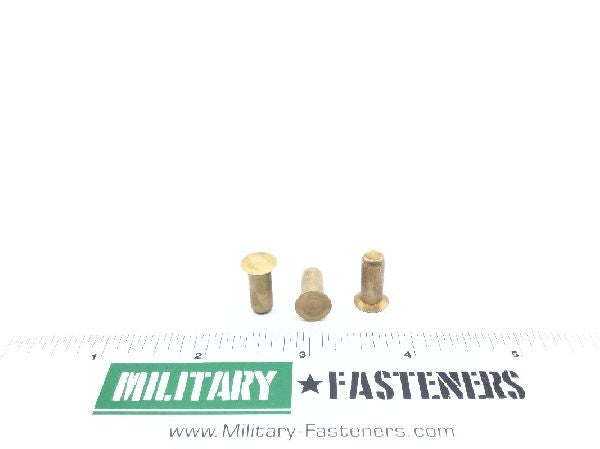

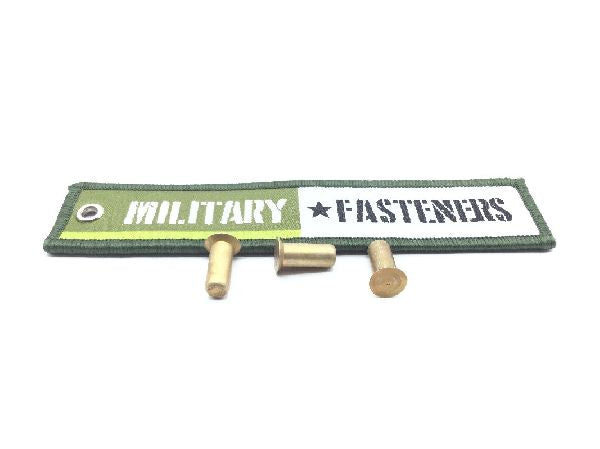

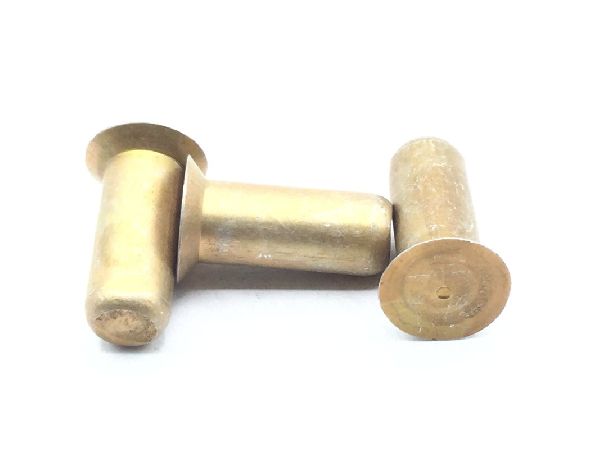

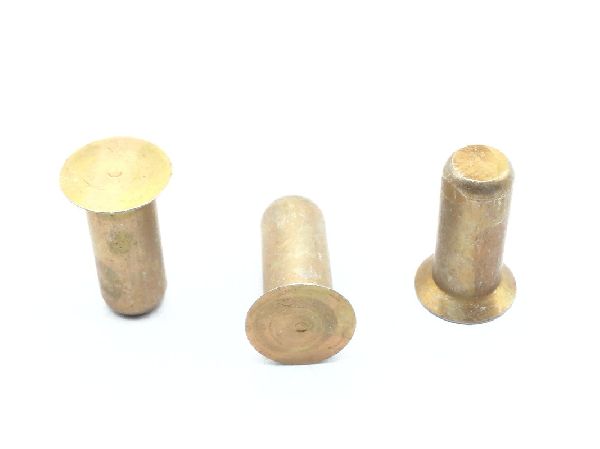

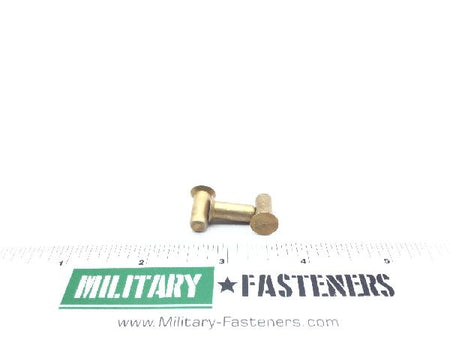

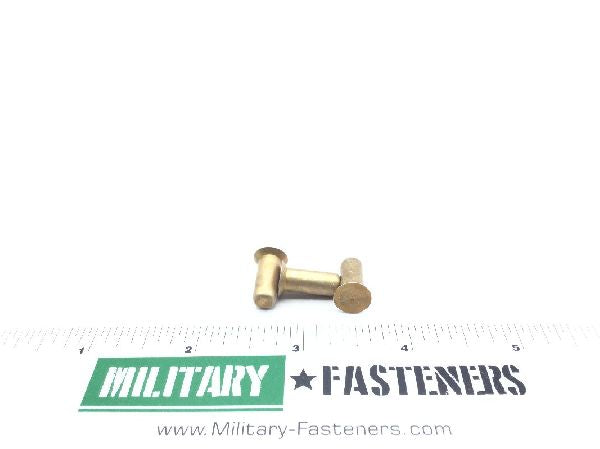

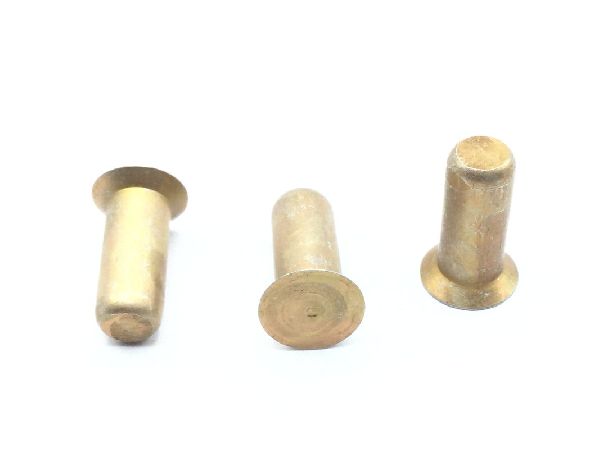

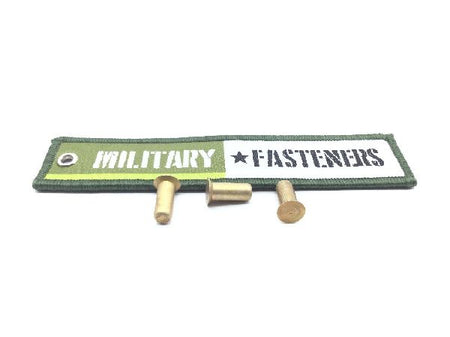

NAS1097AD8-10 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $76.16

Units per Pack 1

Price per Pack $76.16

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $76.16

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2117

Countersink Angle: 100.0 degrees
Countersink Height: Between 0.0232 inches and 0.0278 inches
Fastener Length: Between 0.615 inches and 0.635 inches
Head Height: Between 0.004 inches and 0.006 inches
Head Major Diameter: Between 0.3756 inches and 0.3948 inches
Head Minor Diameter: 0.316 mils and 0.326 centimeters
Heat Treatment: T-4 solution heat treated
Identification Code Color: Yellow
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.249 inches and 0.252 inches
Shank Style: Straight w/radius chamfered tip
Special Features: class 1a finish:chemical conversion per mil-c-5541
Specification Data: 80205-nas1097 professional/industrial association standard
