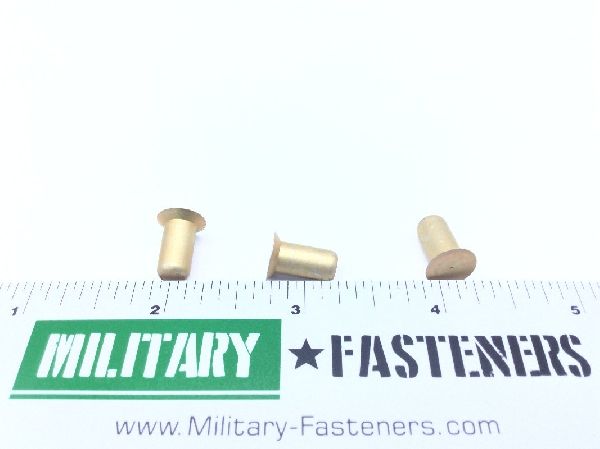

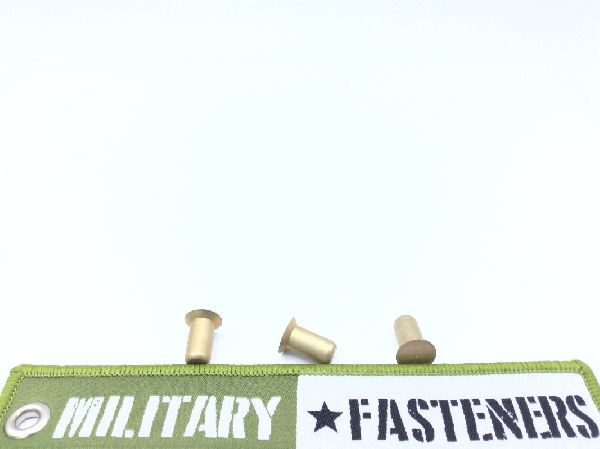

NAS1097AD8-8 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $0.90

Units per Pack 100

Price per Pack $90.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $90.00

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2117

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Countersink Height: 0.060 inches
Fastener Length: Between 0.490 inches and 0.510 inches
Head Height: Between 0.004 inches and 0.006 inches
Head Major Diameter: 0.3948 inches
Head Minor Diameter: 0.316 mils and 0.326 centimeters
Heat Treatment: T-4 solution heat treated
Material Specification: Qq-a-430 federal specification single material response
Shank Diameter: Between 0.249 inches and 0.252 inches
Shank Style: Straight w/radius chamfered tip
Shear Strength: 26000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
