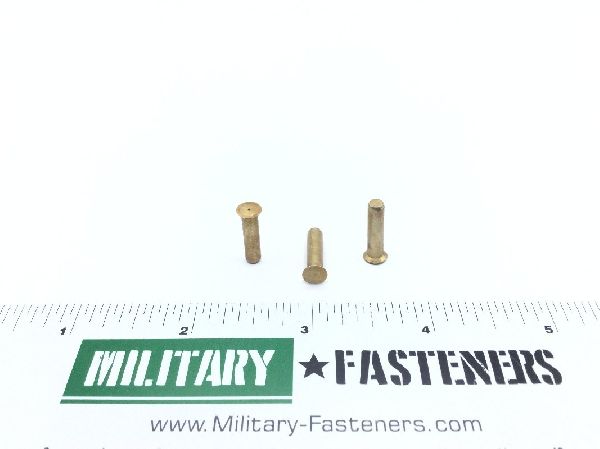

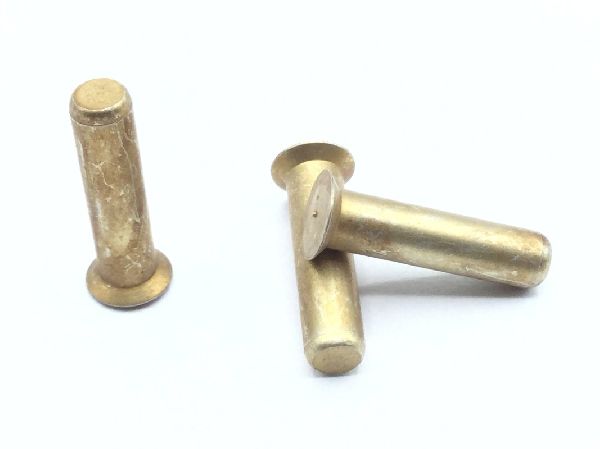

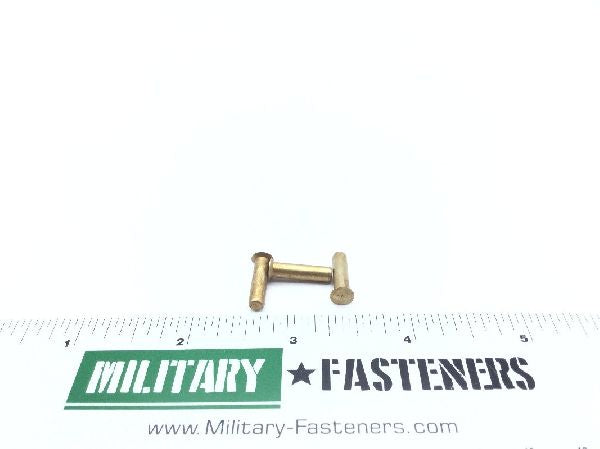

NAS1097D5-10 Solid Rivet

Product Series
NAS
ECCN
EAR99
Schedule
7616.10.1000
Price per Unit $38.73
Units per Pack 1
Price per Pack $38.73
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $38.73
Add item to quote
Head Style
Undersized oval countersunk
Material
Aluminum alloy 2017
Surface Treatment
Type 2 military specification single treatment response mil-a-8625
Countersink Angle
Between 99.5 degrees and 100.5 degrees
Countersink Height
0.039 inches
Fastener Length
Between 0.615 inches and 0.625 inches
Head Height
0.004 inches
Head Major Diameter
Between 0.243 inches and 0.248 inches
Head Minor Diameter
Between 0.190 inches and 0.200 inches
Material Specification
Mil-r-5674 military specification single material response
Shank Diameter
Between 0.155 inches and 0.158 inches
Shank Style
Straight w/radius chamfered tip
Special Features
Color natural
