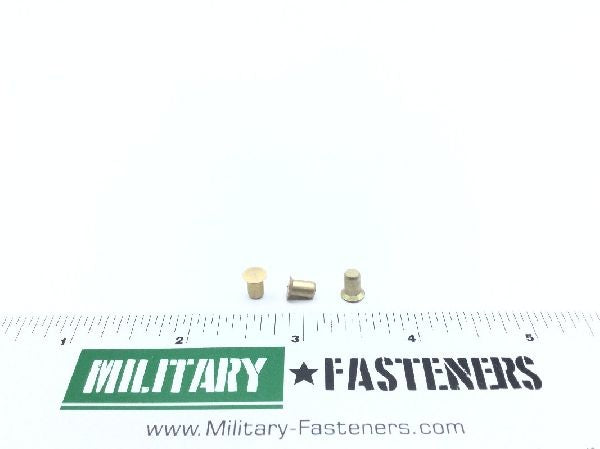

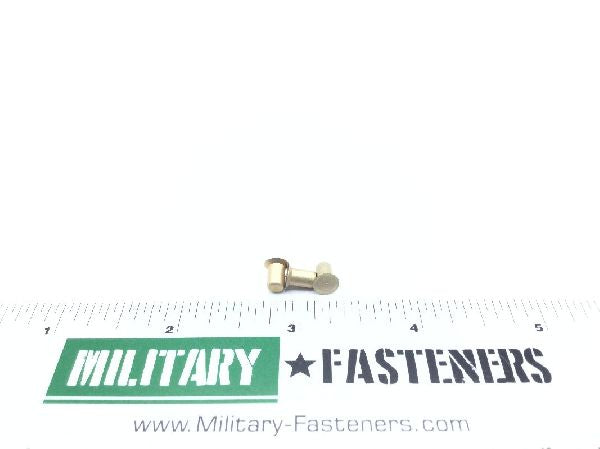

NAS1097D5-4 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $59.00

Units per Pack 1

Price per Pack $59.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $59.00

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2017

Surface Treatment

Cl 1a military specification 2nd treatment response mil-a-8625 military specification 1st treatment response or mil-c-5541

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Countersink Height: 0.037 inches
Fastener Length: 0.250 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: Between 0.225 inches and 0.247 inches
Head Minor Diameter: Between 0.185 inches and 0.195 inches
Heat Treatment: T-4 solution heat treated
Material Specification: T4 federal specification single material response qq-a-430
Shank Diameter: Between 0.155 inches and 0.158 inches
Shank Style: Straight
Shear Strength: 33000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
