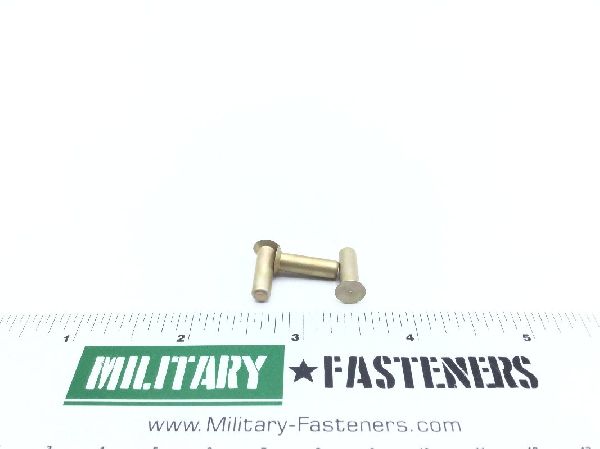

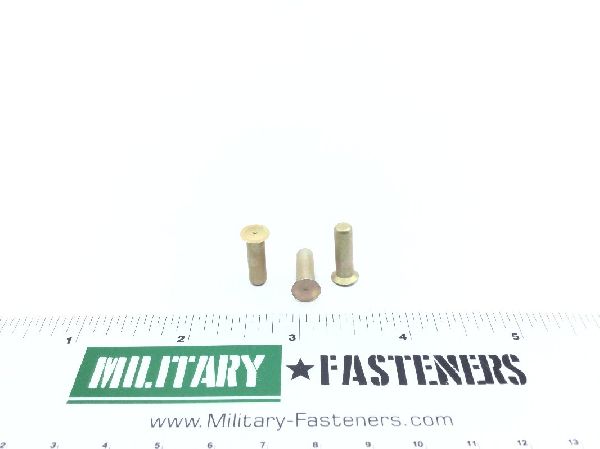

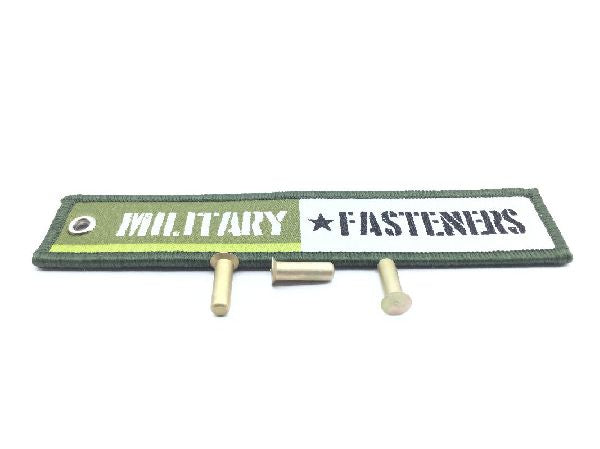

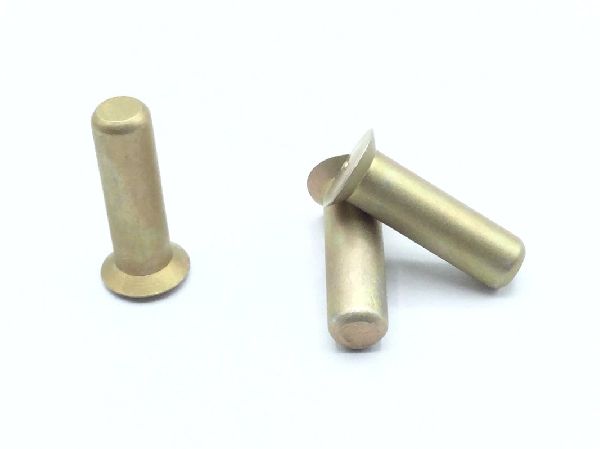

NAS1097D6-10 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $38.73

Units per Pack 1

Price per Pack $38.73

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $38.73

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy 2017

Surface Treatment

Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Countersink Height: 0.046 inches
Fastener Length: 0.625 inches
Head Height: Between 0.004 inches and 0.006 inches
Head Major Diameter: Between 0.275 inches and 0.302 inches
Head Minor Diameter: Between 0.198 inches and 0.208 inches
Heat Treatment: T-4 solution heat treated
Material Specification: T4 federal specification single material response qq-a-430
Shank Diameter: Between 0.186 inches and 0.189 inches
Shank Style: Straight
Shear Strength: 33000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
