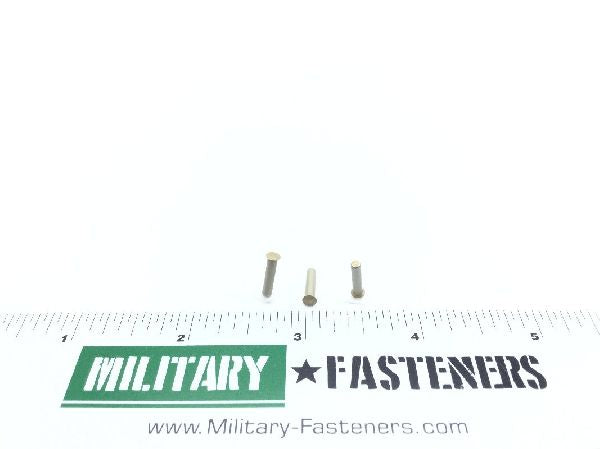

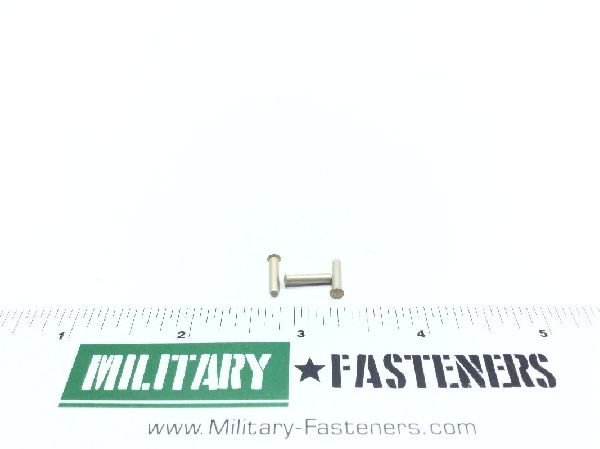

NAS1097KE3-7 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $0.04

Units per Pack 1000

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1000

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Undersized oval countersunk

Material

Aluminum alloy

Surface Treatment

Class 1a military specification single treatment response mil-c-5541

Countersink Angle: Between 99.5 degrees and 100.5 degrees
Countersink Height: Between 0.011 inches and 0.031 inches
Head Height: Between 0.003 inches and 0.005 inches
Head Major Diameter: Between 0.126 inches and 0.148 inches
Head Minor Diameter: Between 0.086 inches and 0.096 inches
Heat Treatment: T-73 solution heat treated
Length: Between 0.428 inches and 0.448 inches
Material Specification: Comp 7050 federal specification single material response qq-a-430
Shank Diameter: Between 0.093 inches and 0.096 inches
Shank Style: Straight
Shear Strength: 36000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
