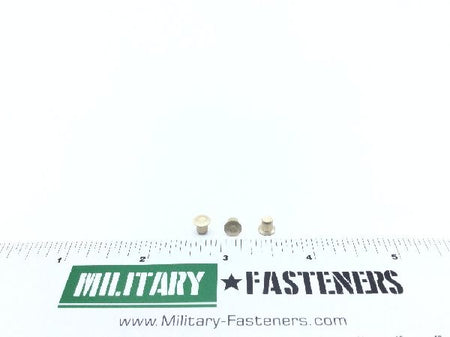

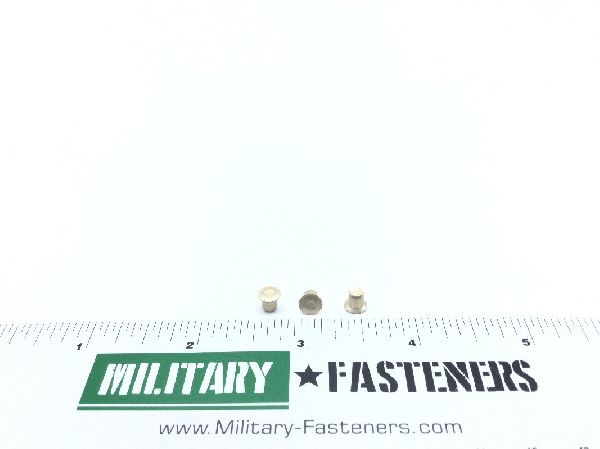

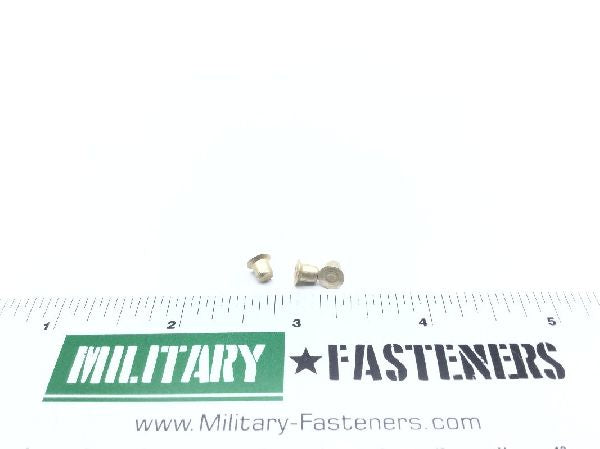

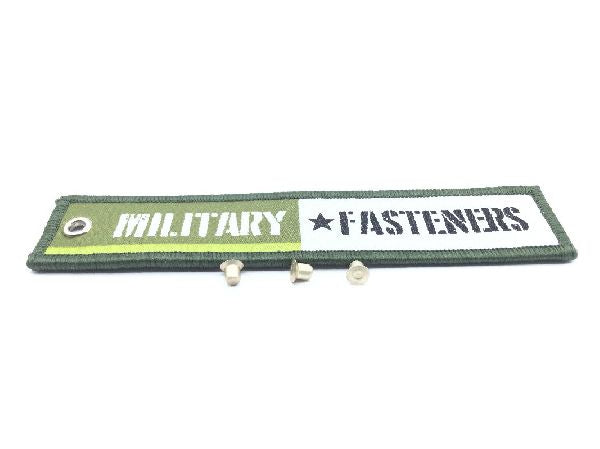

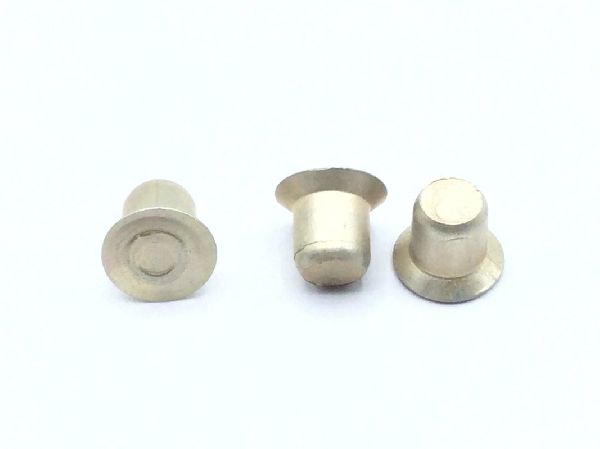

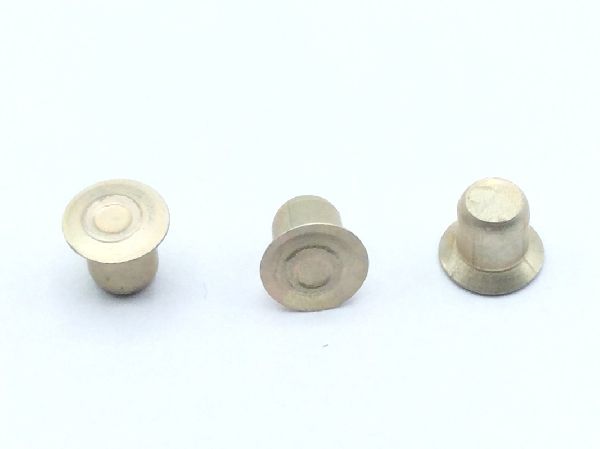

NAS1097KE5-3 Solid Rivet

NAS1097KE5-3 Solid Rivet (2)

NAS1097KE5-3 Solid Rivet (3)

NAS1097KE5-3 Solid Rivet (4)

NAS1097KE5-3 Solid Rivet (5)

NAS1097KE5-3 Solid Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1097KE5-3 Solid Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7318.23.0000

Price per Unit $91.40

Units per Pack 1

Price per Pack $91.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: LBS

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $91.40

Add item to quote

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Aluminum alloy 2219

Surface Treatment

Mil-c-5541 military specification single treatment response

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.186 inches and 0.188 inches
Head Major Diameter: Between 0.240 inches and 0.247 inches
Shank Diameter: Between 0.155 inches and 0.158 inches
Shank Style: Straight
Shear Strength: 36000 single pounds per square inch
Specification Data: 80205-nas1097 professional/industrial association standard
