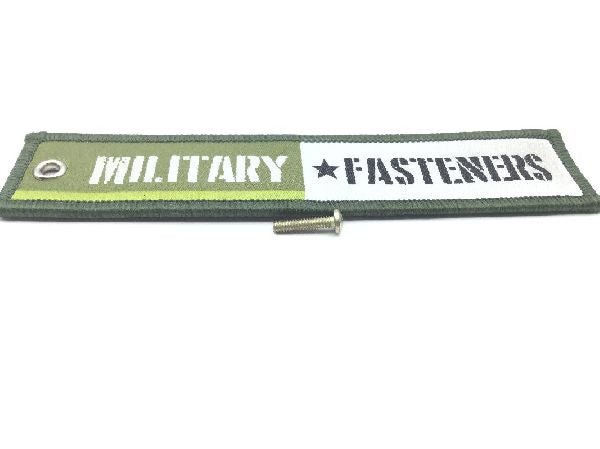

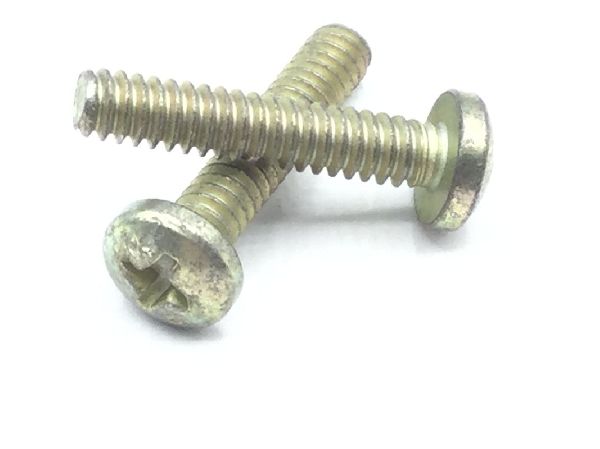

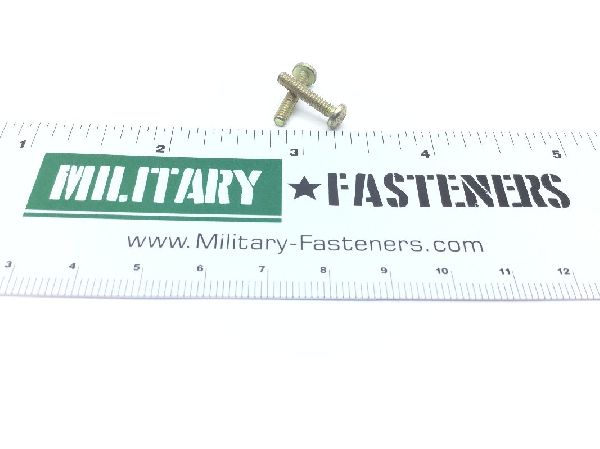

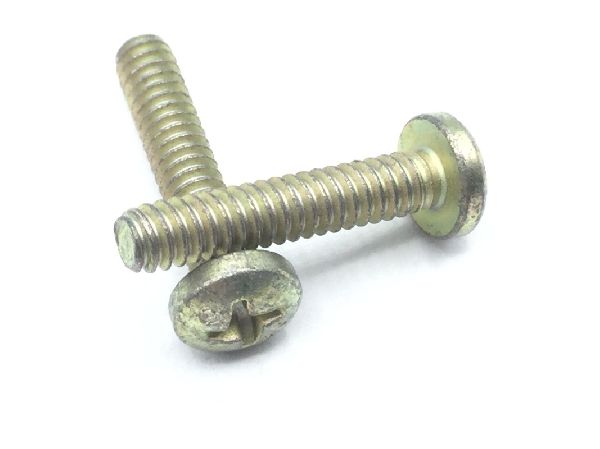

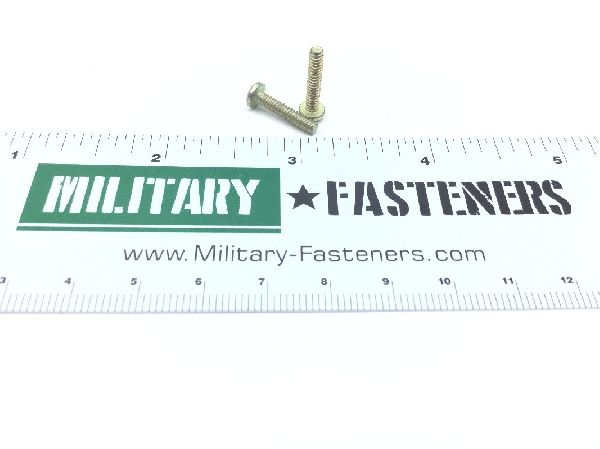

NAS1100-04-9 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.31

Units per Pack 25

Price per Pack $32.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $32.75

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: 0.562 inches
Hardness Rating: Between 36 rockwell c and 40 rockwell c
Head Height: Between 0.07 inches and 0.08 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4140 or steel comp 4037
Screw Surface Treatment: Cadmium or chromate
Screw Surface Treatment Specification: Cl 3 federal specification all treatment responses type 2 qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.512 inches and 0.562 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
