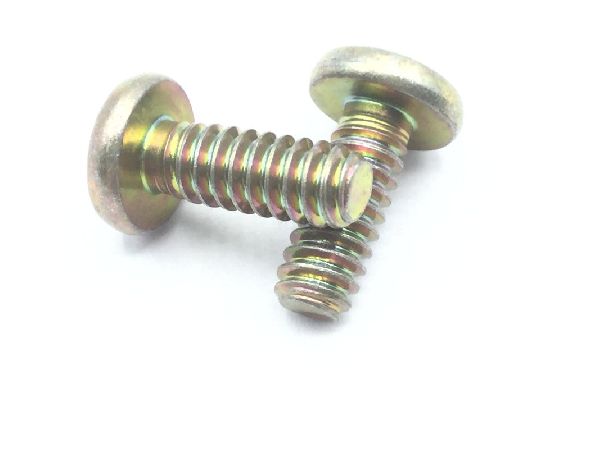

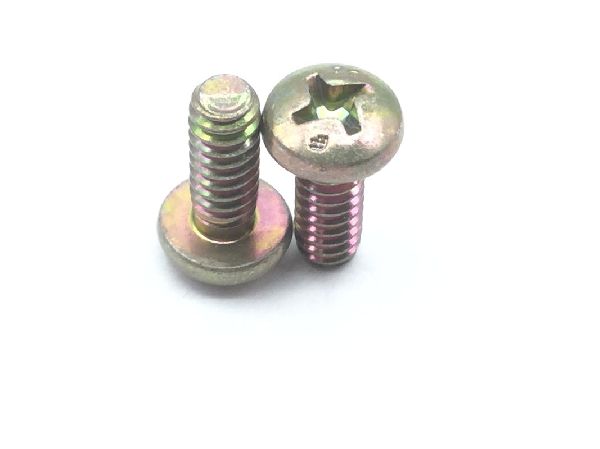

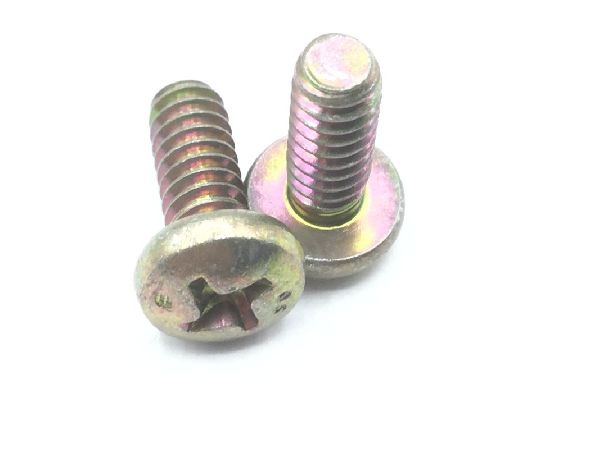

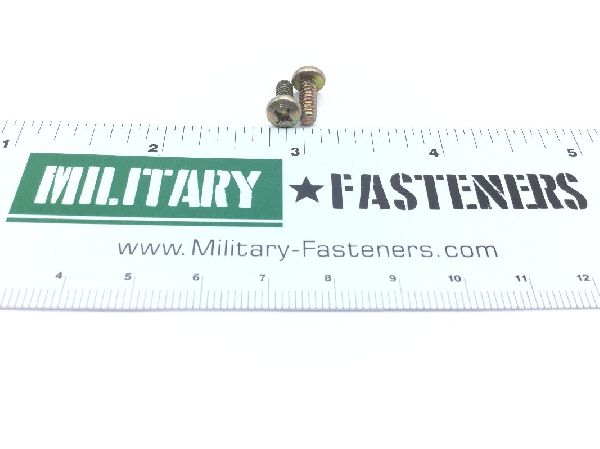

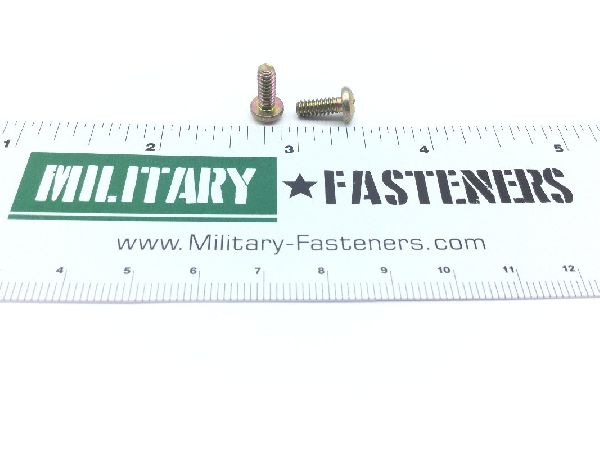

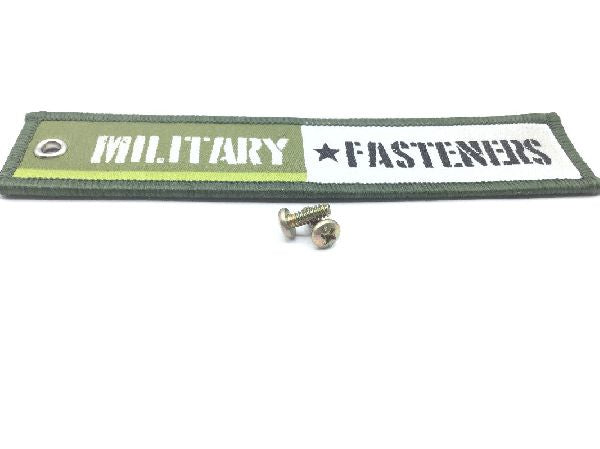

NAS1100-06-6 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.49

Units per Pack 100

Price per Pack $49.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $49.00

Add item to quote

Head Style

Pan

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.087 inches and 0.097 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 cl 3 federal specification all treatment responses qq-p-416
Specification Data: 80205-nas1100 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.256 inches and 0.270 inches
