NAS1100-08-7 Machine Screw

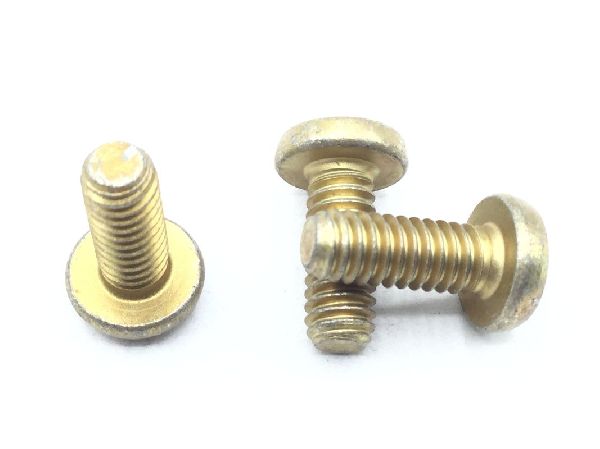

NAS1100-08-7 Machine Screw (2)

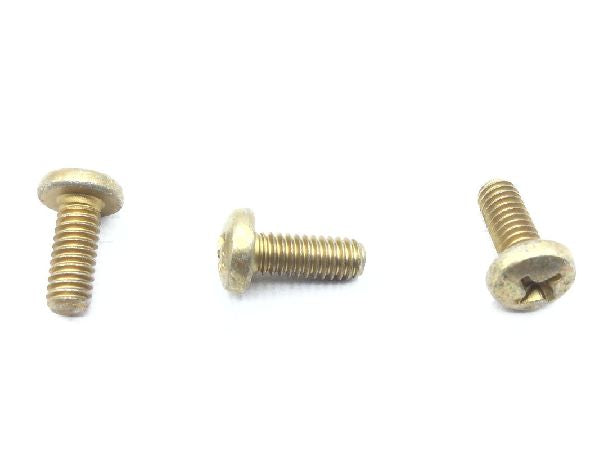

NAS1100-08-7 Machine Screw (3)
NAS1100-08-7 Machine Screw (4)

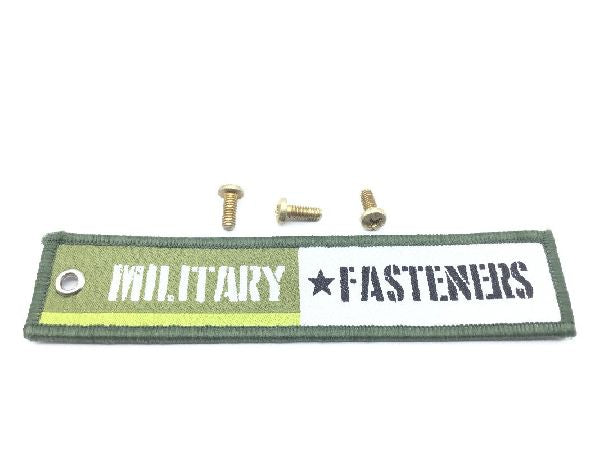

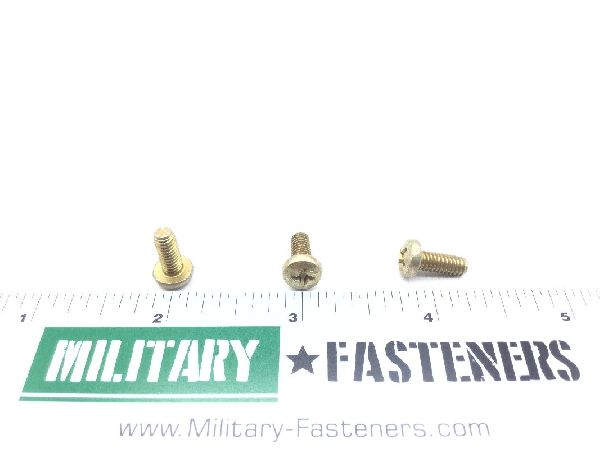

NAS1100-08-7 Machine Screw (5)

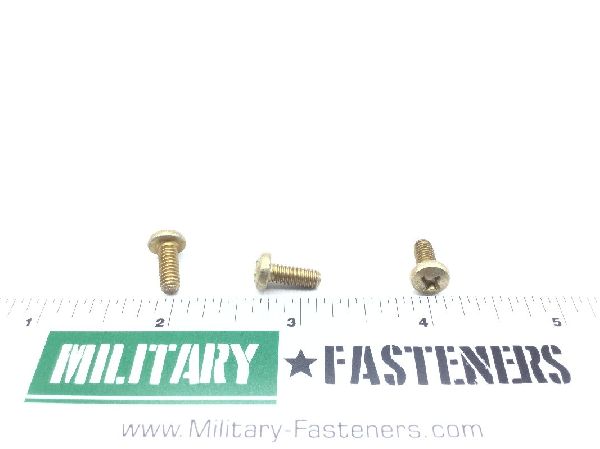

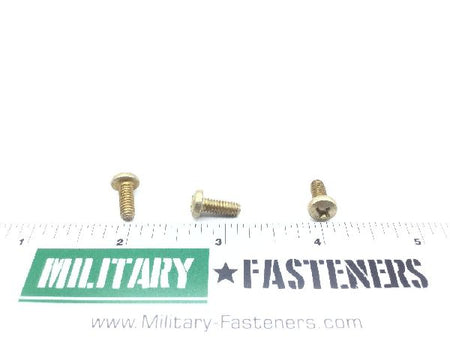

NAS1100-08-7 Machine Screw (6)
NAS1100-08-7 Machine Screw
NAS1100-08-7 Machine Screw (2)
NAS1100-08-7 Machine Screw (3)
NAS1100-08-7 Machine Screw (4)
NAS1100-08-7 Machine Screw (5)
NAS1100-08-7 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1100-08-7 Machine Screw

Product Series
NAS
ECCN
EAR99
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Pan
Material
Steel
Surface Treatment
Class 3 federal specification all treatment responses type 2 qq-p-416
Thread Class
3a
Fastener Length
0.438 inches
Hardness Rating
Between 36.0 rockwell c and 40.0 rockwell c
Head Height
Between 0.105 inches and 0.115 inches
Internal Drive Style
Torque set
Min. Tensile Strength (psi)
160000 pounds per square inch
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.376 inches and 0.438 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Head Diameter
Between 0.306 inches and 0.322 inches
