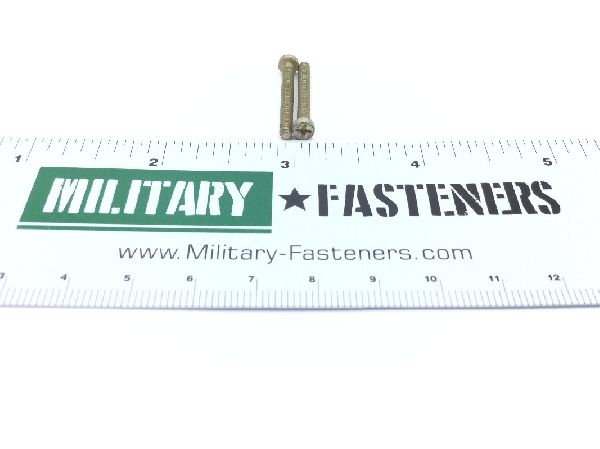

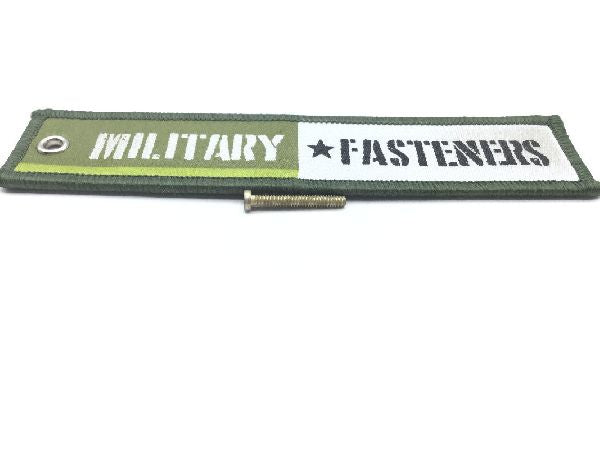

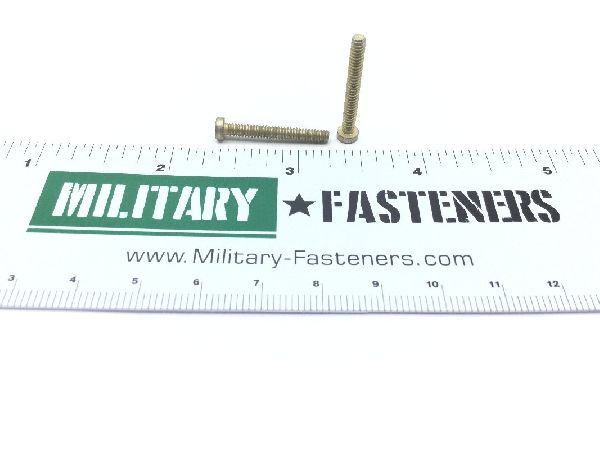

NAS1101-04-14 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Head Style

Flat fillister

Thread Class

Fastener Length: Between 0.844 inches and 0.875 inches
Head Height: Between 0.059 inches and 0.069 inches
Internal Drive Style: Torque set
Part Name Assigned By Controlling Agency: offset cruciform full thread machine-flat fillister head screw
Screw Material: Steel comp 4140 or steel comp 4340 or steel comp 8740
Screw Material Specification: Mil-s-5626 military standard single material response or ams 6415 national specification single material response or mil-s-6049 military standard single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: cl 2 assn standard single treatment response typ ii qq-p-416
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.794 inches and 0.875 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unjc
Head Diameter: Between 0.178 inches and 0.183 inches
