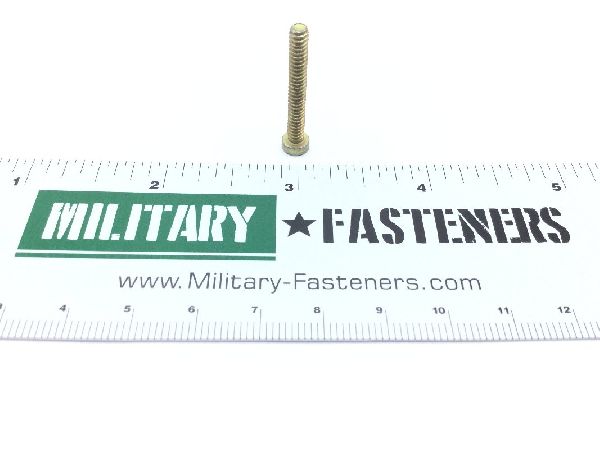

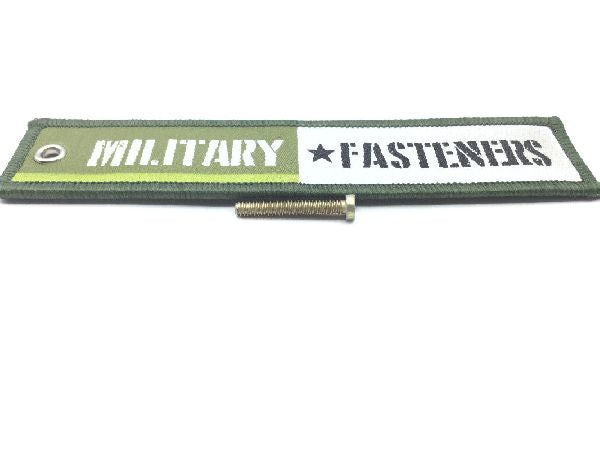

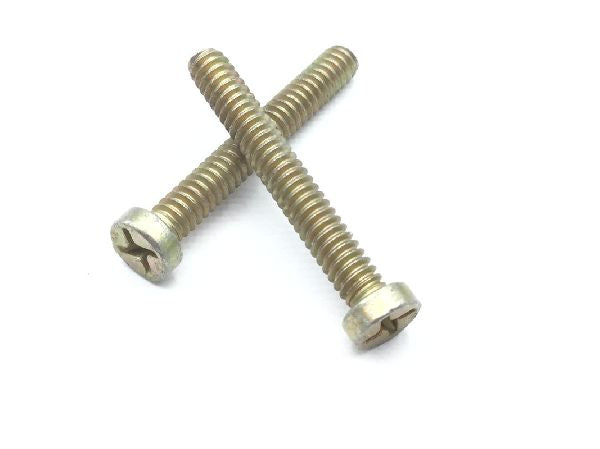

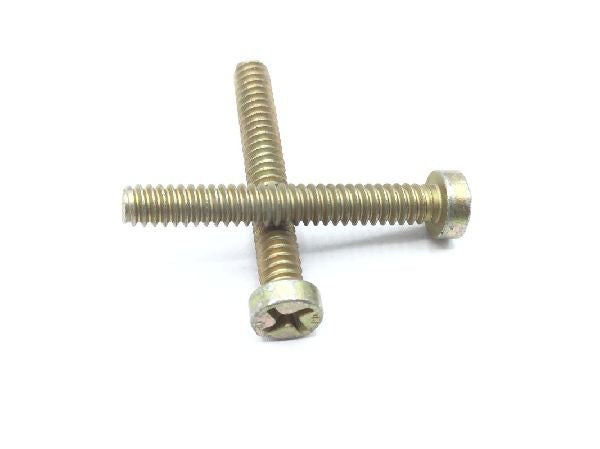

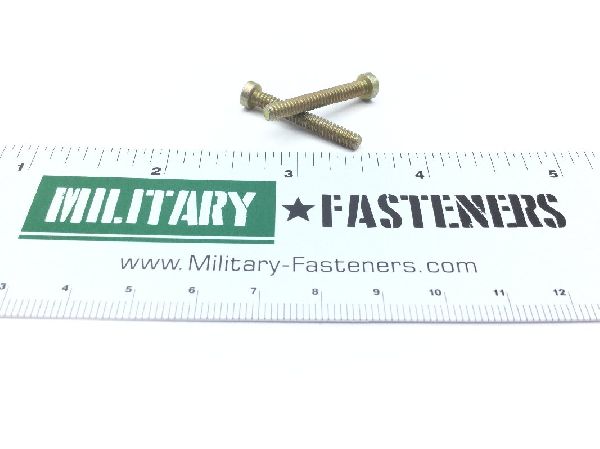

NAS1101-06-16 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.62

Units per Pack 20

Price per Pack $52.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $52.40

Add item to quote

Head Style

Flat chamfer

Thread Class

Fastener Length: Between 0.969 inches and 1.000 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.074 inches and 0.086 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 16000 pounds per square inch
Screw Material: Steel comp
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Class 2 federal specification single treatment response type 2 qq-p-416
Specification Data: 80205-nas1101 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.907 inches and 0.938 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.221 inches and 0.226 inches
