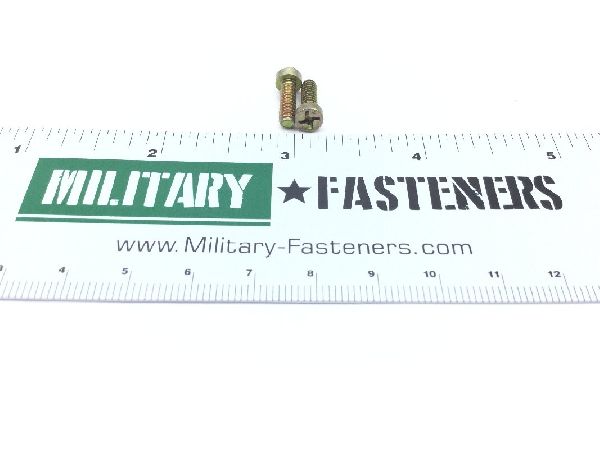

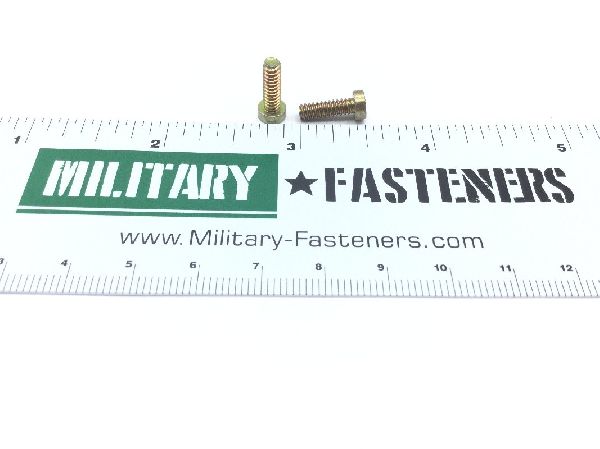

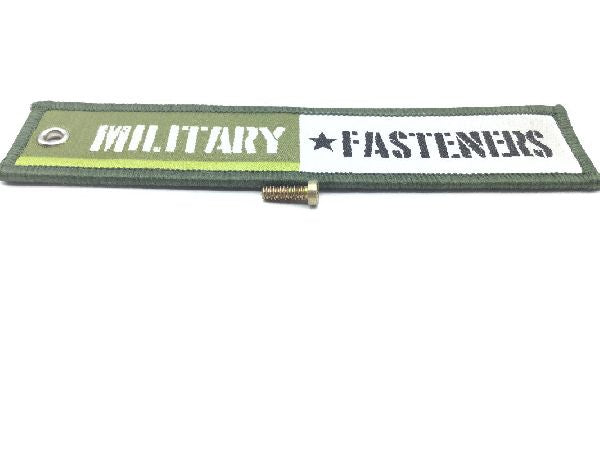

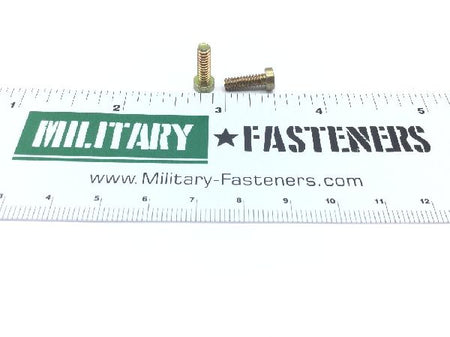

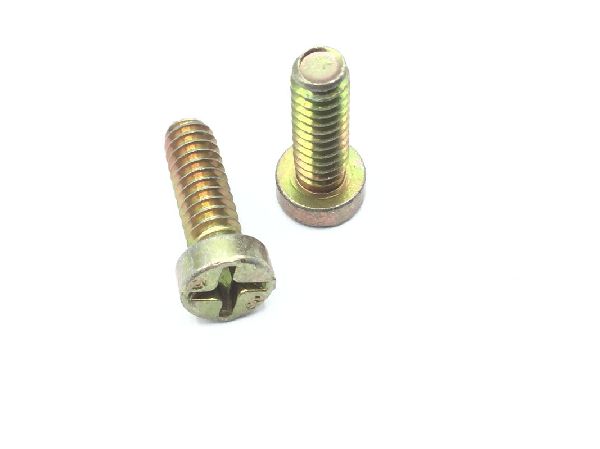

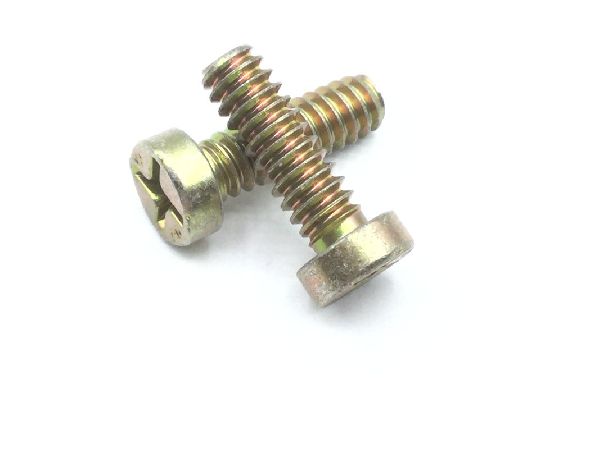

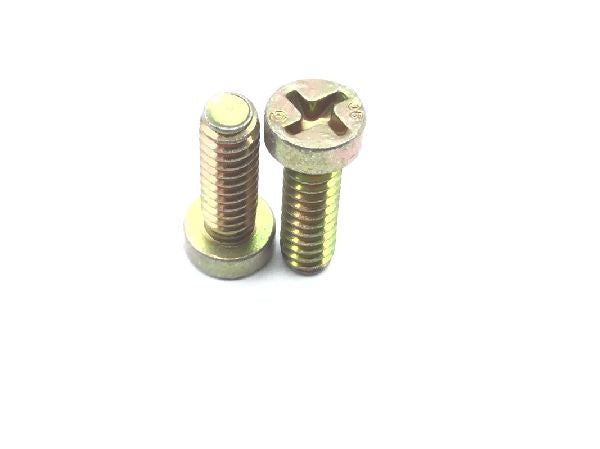

NAS1101-06-7 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Flat chamfer

Thread Class

Fastener Length: 0.438 inches
Hardness Rating: Between 36.0 rockwell c and 42.0 rockwell c
Head Height: Between 0.074 inches and 0.086 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 8740 or steel comp 8735 or steel comp 6150 or steel comp 4140 or steel comp 4037
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Qq-p-416 type 2 cl 3 federal specification single treatment response
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.376 inches and 0.438 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.221 inches and 0.226 inches
