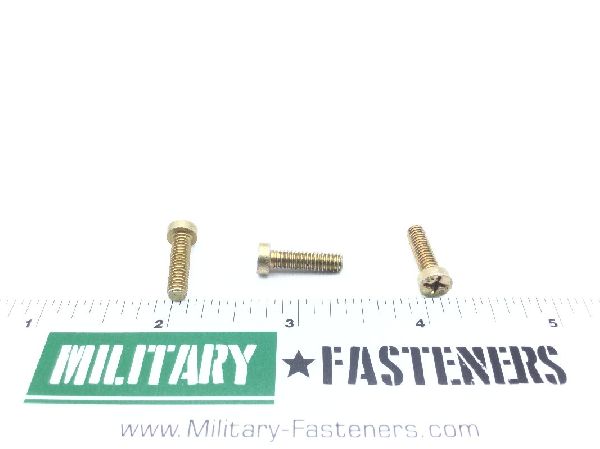

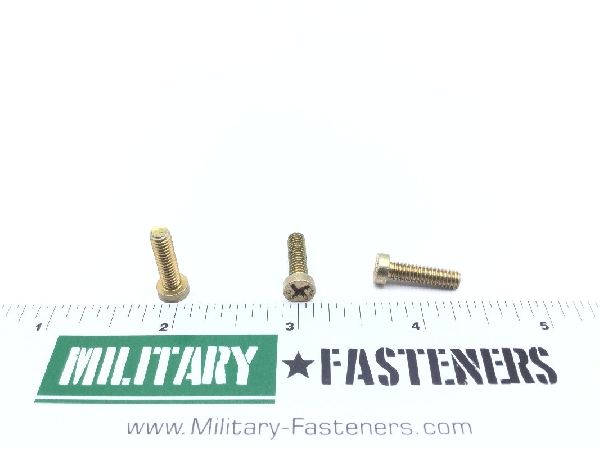

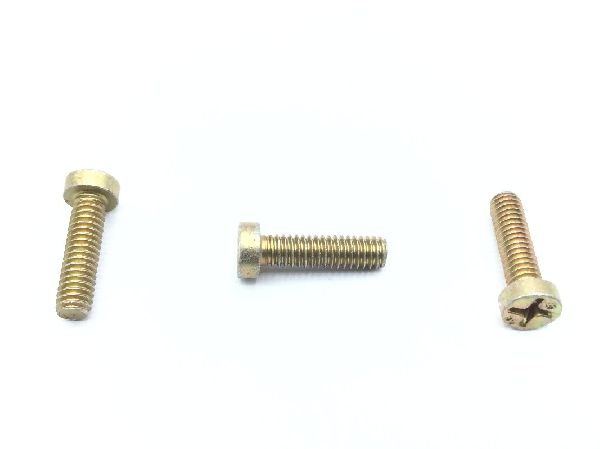

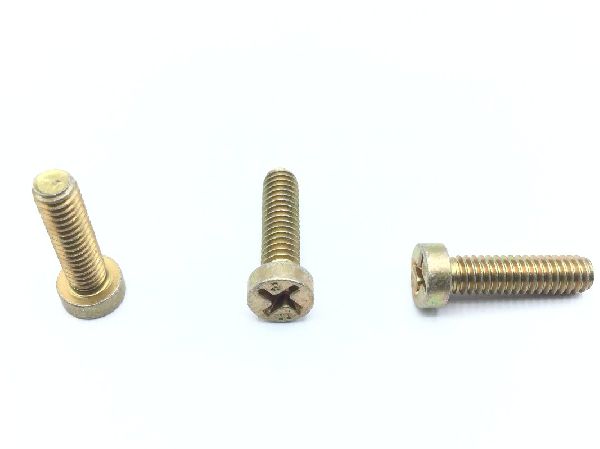

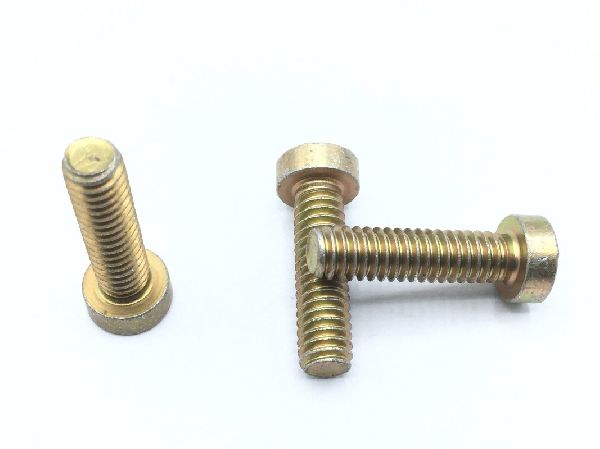

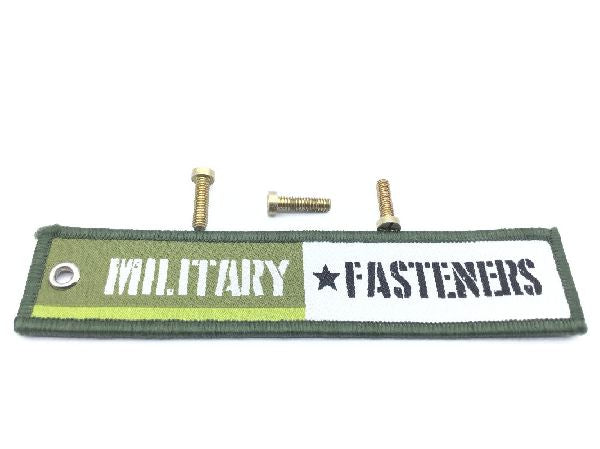

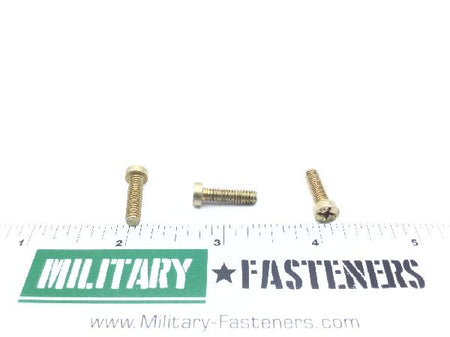

NAS1101-08-10 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan no. 2

Thread Class

Fastener Length: Between 0.594 inches and 0.625 inches
Head Height: Between 0.088 inches and 0.102 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp e4340 or steel comp 4140 or steel comp 8740 or steel comp 8735
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 cl 2 federal specification single treatment response qq-p-416
Specification Data: 80205-nas1101 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.532 inches and 0.625 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.265 inches and 0.270 inches
