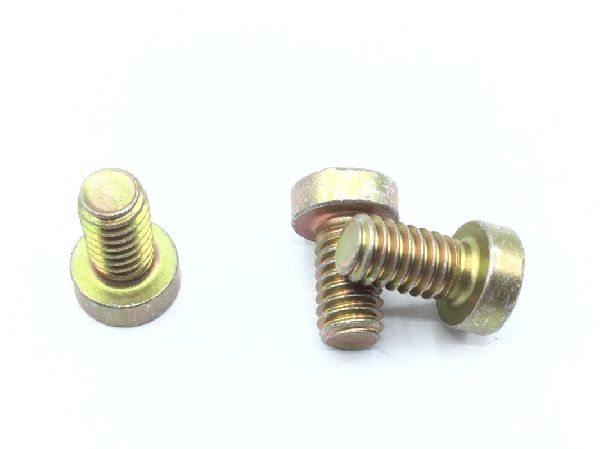

NAS1101-08-5 Machine Screw

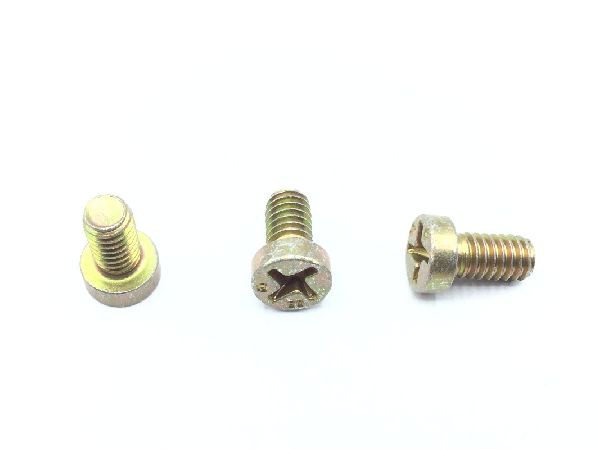

NAS1101-08-5 Machine Screw (2)

NAS1101-08-5 Machine Screw (3)

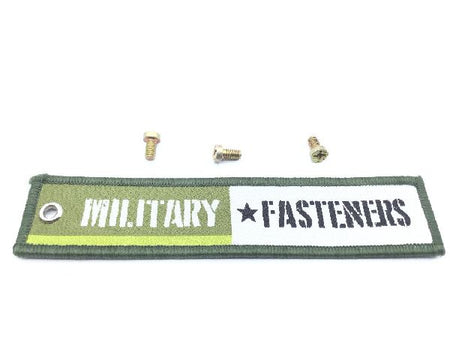

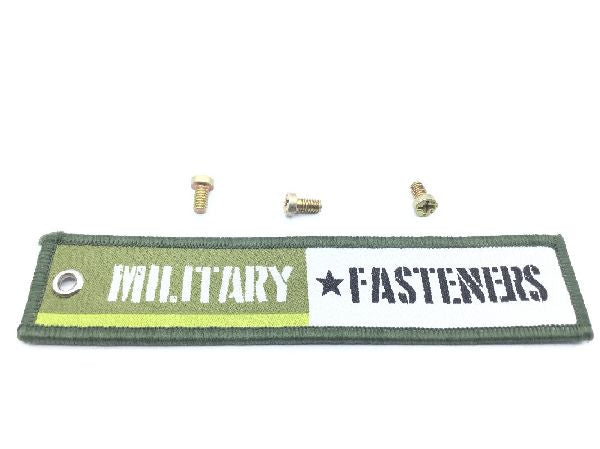

NAS1101-08-5 Machine Screw (4)

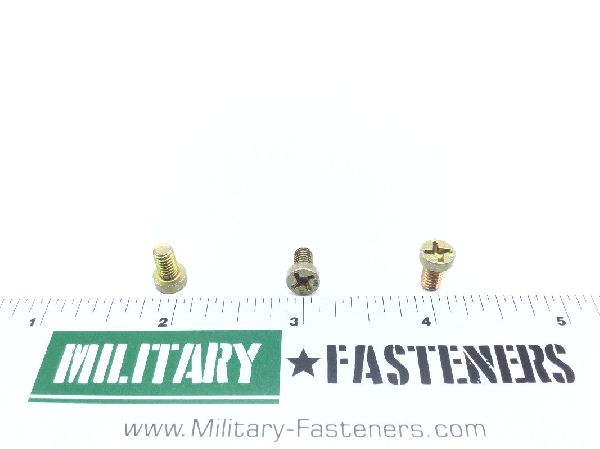

NAS1101-08-5 Machine Screw (5)

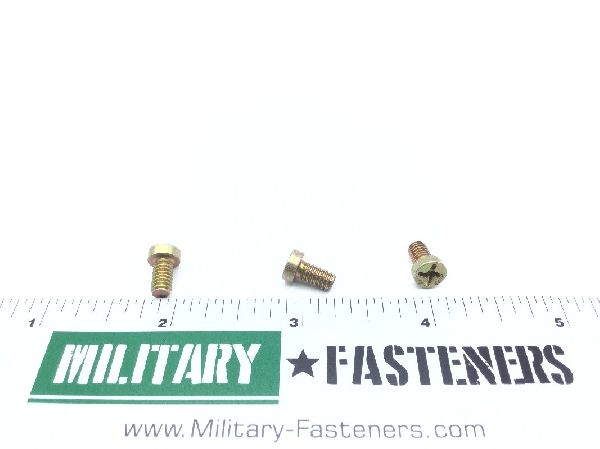

NAS1101-08-5 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS1101-08-5 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $3.86

Units per Pack 10

Price per Pack $38.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.60

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

3a

Fastener Length: Between 0.281 inches and 0.312 inches
Hardness Rating: Between 36.0 rockwell c and 42.0 rockwell c
Head Height: Between 0.088 inches and 0.102 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.250 inches and 0.312 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.265 inches and 0.270 inches
