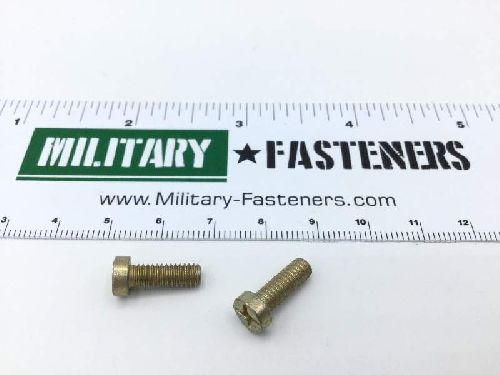

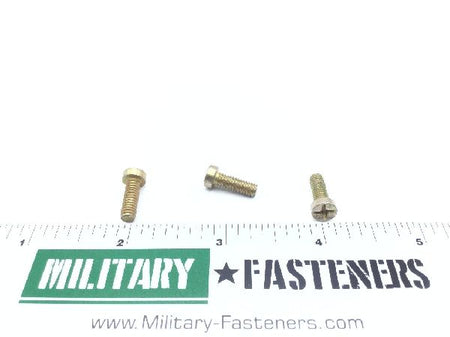

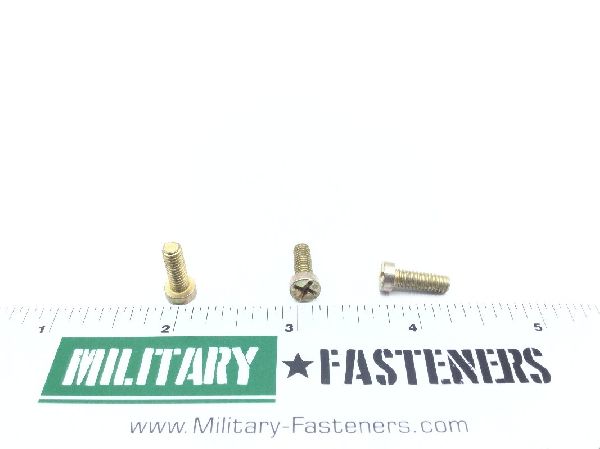

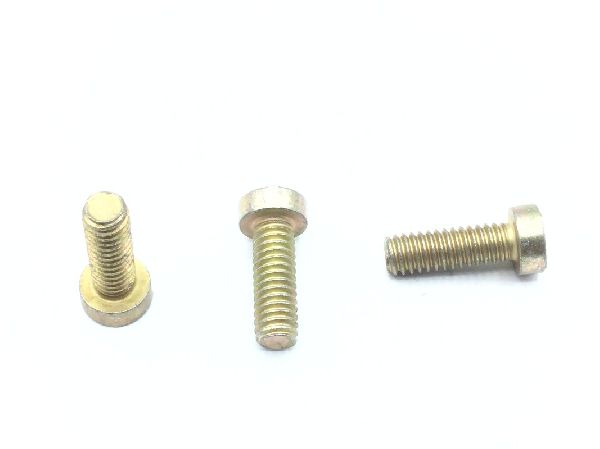

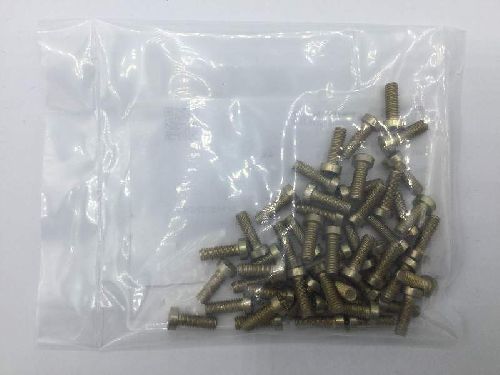

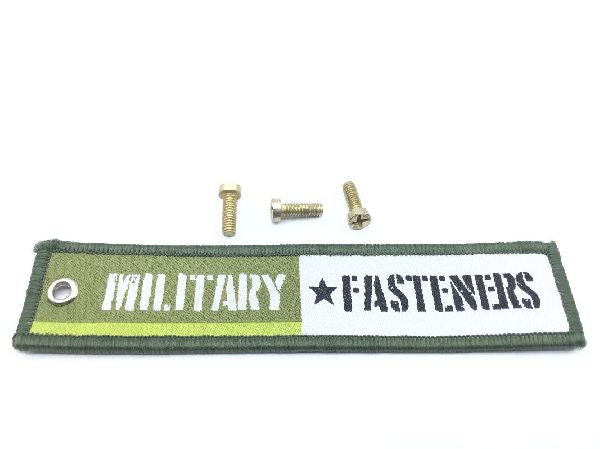

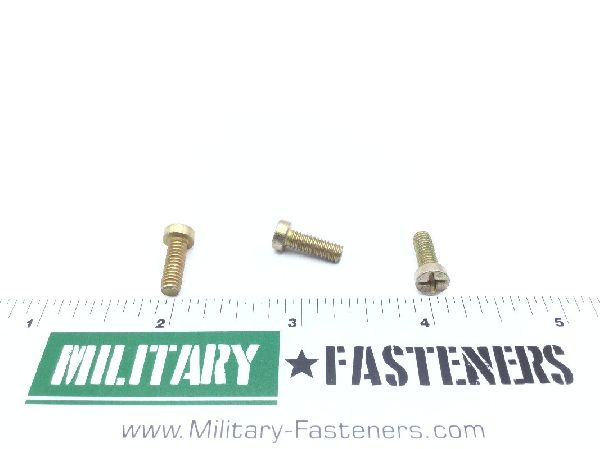

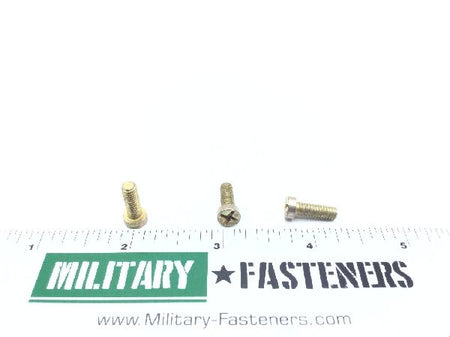

NAS1101-08-8 Machine Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.89

Units per Pack 25

Price per Pack $47.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $47.25

Add item to quote

Head Style

Flat chamfer

Thread Class

End Application: F-16 aircraft simulator anmps t1 phoenix missile amraam missile
Fastener Length: 0.500 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Head Height: Between 0.088 inches and 0.102 inches
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Type 2 class 3 federal specification all treatment responses qq-p-416
Specification Data: 80205-nas1101 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.438 inches and 0.500 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.265 inches and 0.270 inches
